The PMP 450b Subscriber Module supports frequencies from 4.9 – 5.9 GHz and provides 300 Mbps aggregate throughput in a 40 MHz channel.

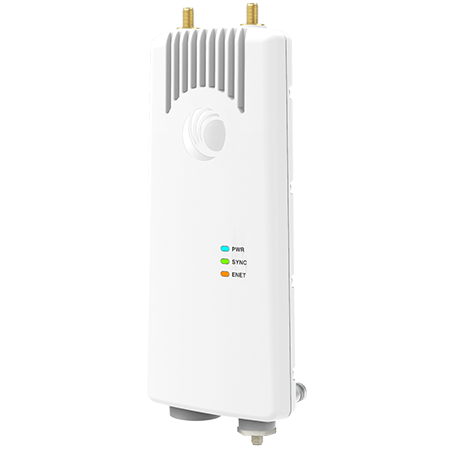

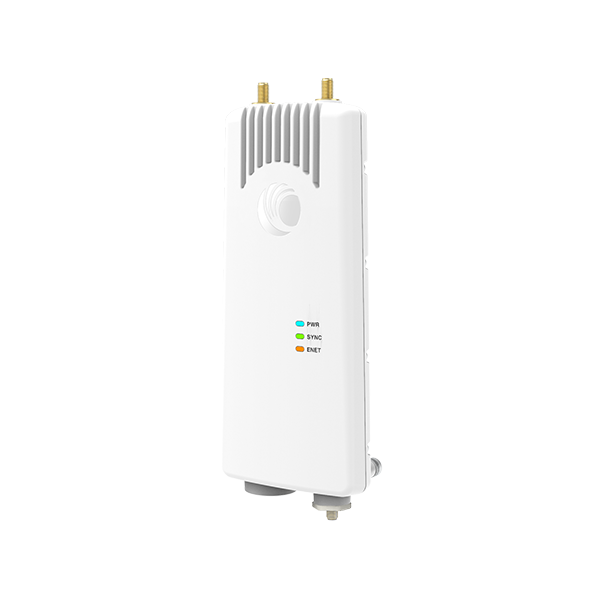

5 GHz PMP 450b Connectorized Subscriber Module
5 GHz PMP 450b Connectorized Subscriber Module
Описание
Спецификации
SPECTRUM
Channel Spacing:
Configurable on 2.5 MHz increments
Frequency Range:
- 4900 - 5925 MHz
Channel Width:
5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
INTERFACE
Ethernet Interfaced:
100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
PERFORMANCE
GPS Synchronization:
Yes, synchronized by Access Point
Maximum Deployment Range:
Up to 40 miles (64 km)
Quality of Service:
Diffserv QoS
SECURITY
Encryption:
FIPS-197 128-bit AES, 256-bit AES (optional)
PHYSICAL
Dimensions (HxWxD):
24 x 4 x 9 cm (9.5” x 1.5” x 3.5”)
Environmental:
IP67
Weight:
0.9 kg (2 lbs) including mounting bracket
