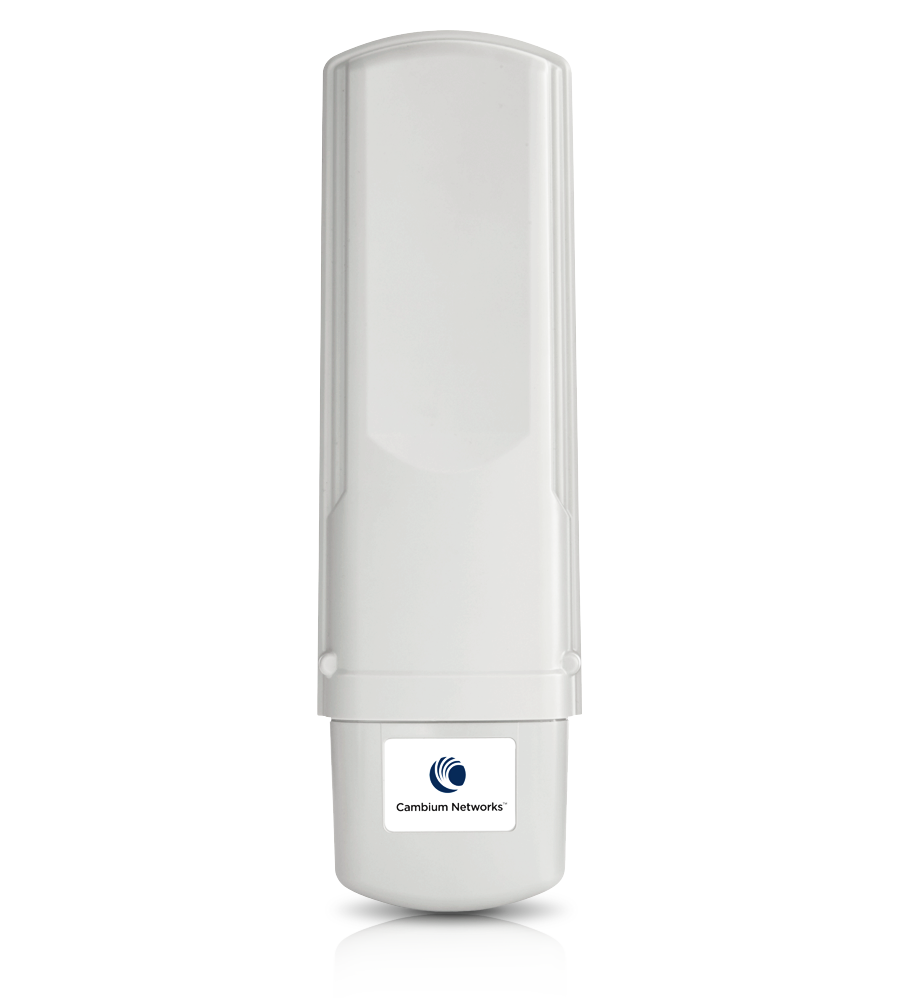

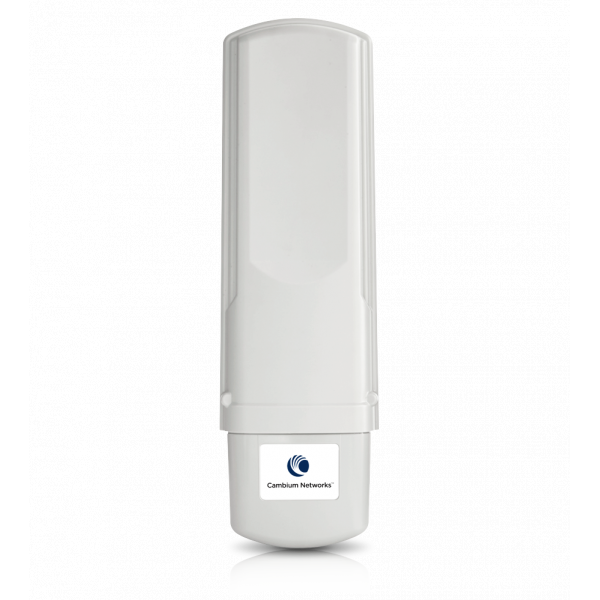

PTP 450 is Cambium Networks’ first point-to-point backhaul solution offered in 3.65 GHz lightly licensed and 3.5 GHz licensed bands, in addition to 5 GHz. PTP 450 is optimized for reach, reliability and throughput in a compact form factor, making it ideal for enterprise access services such as data, VoIP, video conferencing, video surveillance and backup connection service.
PTP 450
PTP 450
Описание
Спецификации
INTERFACE
MAC (Media Access Control) Layer:
Cambium Networks proprietary
Network Management:
HTTP, HTTPS, Telnet, FTP, SNMP v3
Physical Layer:
14x14 Multi-User MIMO OFDM
Protocols Used:
IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
VLAN:
802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
PERFORMANCE
ARQ:
Yes
GPS Synchronization:
Yes, via Autosync (CMM5 or UGPS)
Maximum Deployment Range:
Up to 40 miles (64 km)
Quality of Service:
Diffserv QoS
Latency:
10 ms, typical
LINK BUDGET
Antenna Beam Width (Azimuth):
Integrated Sector Array
Antenna Beam Width (Elevation):
2° Electrical Downtilt, 8° Elevation (with Null Fill)
Maximum EIRP:
+42 dBm (or up to maximum allowed by regulation)
