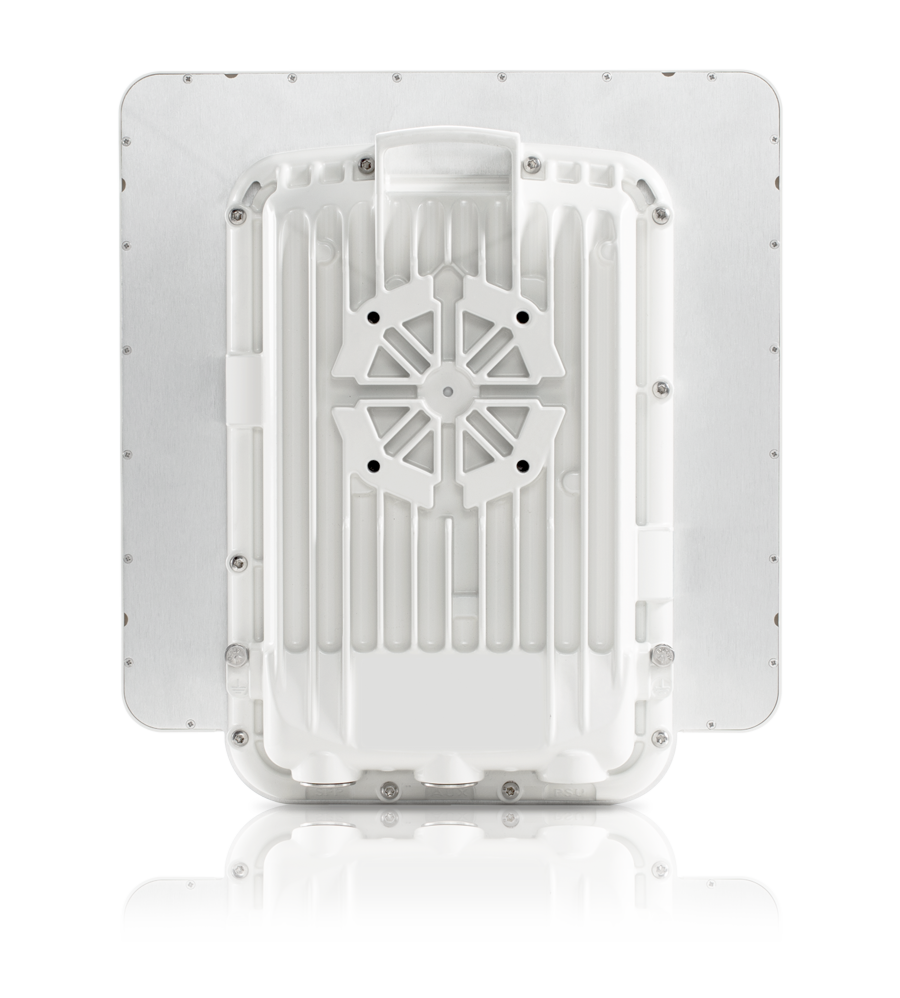

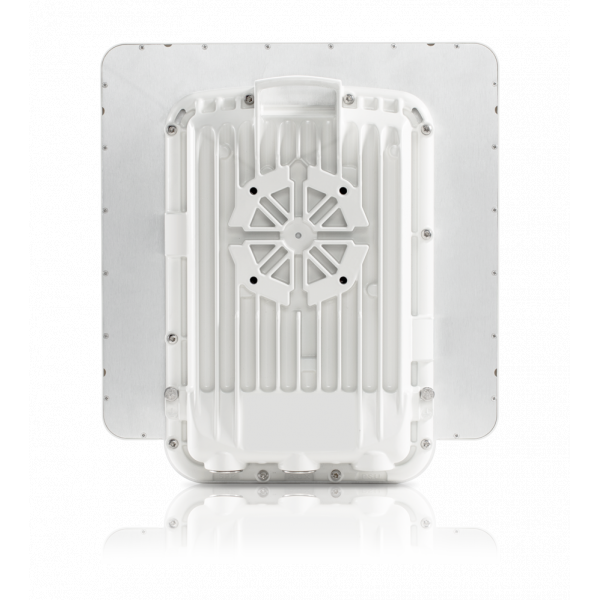

PTP 670

RADIO TECHNOLOGY

RF Bands:

Wide-band operation 4.9 to 6.05 GHz (Allowable frequencies and bands are dictated by individual country regulations)

Channel Sizes:

5, 10, 15, 20, 30, 40, and 45 MHz channels Channel sizes depend on individual country regulations

Spectral Efficiency:

10 bps/Hz maximum

Channel Selection:

By Dynamic Spectrum Optimization or manual intervention Automatic selection on start-up and continual self-optimization to avoid interference

Maximum Transmit Power:

Up to 27 dBm

System Gain:

Up to 164 dB with Integrated antenna

Antenna:

Connectorized: operate with a selection of separately-purchased single and dual polarity antennas through 2 x N-type female connectors

Range:

Up to 155 miles (250 km)

Security:

FIPS-197 compliant 128/256-bit AES Encryption (optional) HTTPS and SNMPv3 Identity-based user accounts Configurable password rules User authentication and RADIUS support Event logging and management; optional logging via syslog Disaster recovery and vulne

ETHERNET BRIDGING

Protocol:

IEEE 802.3

Latency:

1-3 milliseconds one direction

QOS:

Extensive QOS supporting up to 8 Queues

Packet Classification:

Layer 2 and Layer 3 IEEE 802.1p, MPLS, Ethernet priority

Frame Support:

PTP Mode: Jumbo frame up to 9600 bytes HCMP Mode: 2000 bytes per frame

Packet Performance:

Line rate ( >850K packets per second)

MANAGEMENT

Network Management:

In-band and out-of-band management (OOBM)

System Management:

IPv6/IPv4 dual-stack management support Web access via browser using HTTP or HTTPS/TLS3 SNMP v1, v2c and v3, MIB-II & proprietary PTP MIB Online spectrum analyzer (no impact on payload traffic or network operation)

Installation:

Built-in audio and graphical assistance for link optimization

Remote Modules Master:

Up to 8 Nodes

Channel Bandwidth:

20 MHz and 40 MHz

PHYSICAL

Dimensions:

Connectorized ODU: Width 204mm (8.0”), Height 318mm (12.5”), Depth 90mm (3.5”)

Weight:

Connectorized ODU: 3.1 kg (6.8 lbs) including bracket

Operating Temperature:

-40° to +140° F (-40° to +60° C), including solar radiation

Dust- Water Intrusion Protection:

IP66 and IP67

Wind Speed Survival:

200 mph (322 kph)

Power Supply:

1. AC power injector: 32° to 104° F (0° to +40° C); 35 W; 90-240 VAC, 50/60Hz Dimensions: Width 5.2”(132mm), Height 1.4”(36mm), Depth 2”(51mm) 2. AC + DC power injector: -40° to 140° F (-40° to +60° C); 70 W; 90-240 VAC, 50/60 Hz Dimensions: Width 9.75” (

Power Consumption:

30 W maximum (up to 70 W with 802.3at device on auxiliary port)

ENVIRONMENTAL & REGULATORY

Radio:

4.9 GHz: FCC Part 90Y, RSS-111 5.x GHz: FCC Part 15, sub-parts 15C and 15E; RSS 210 Issue 8; EN 302 502; EN 301 893 Eire ComReg 02/71R1, UK Approval to IR2007

Protection and Safety:

UL60950-1; IEC60950-1; EN60950-1; CSA-C22.2 NO. 60950-1; CB approval for Global

EMC:

Europe – EN 301 489-1 and -4
