Изцяло предназначен за инсталации на открито, двуядрен модел с голяма мощност 35 dBm, който може да работи съвместно с PTP 820C. e многоядрено устройство. PTP 820C HP осигурява 1.2 Gbps и разполага със сменяем на място диплексър.

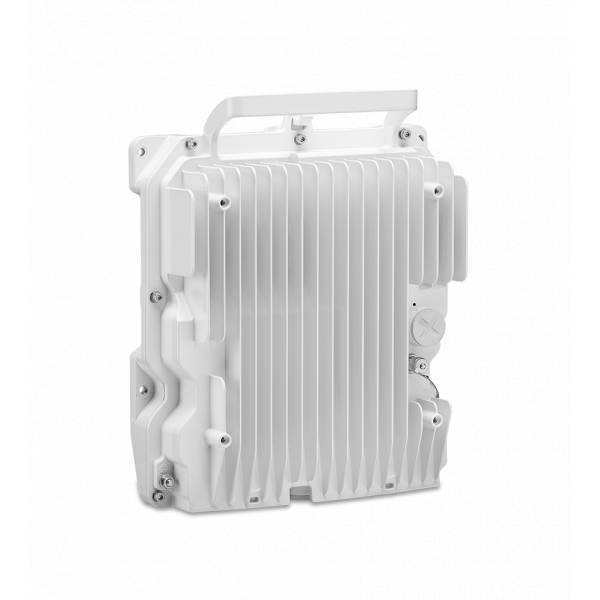

PTP 820C HP
PTP 820C HP
Описание
Спецификации
RADIO
Features:
- Field Changeable Diplexers Radio Features
- Multi-Carrier Adaptive Bandwidth Control (up to 2+0)
Frequency:
- 6-11 GHz
- 1+0, 2+0 SP/DP, 2+0 XPIC
ETHERNET
Features:
- 4K VLANs
- VLAN add/remove/translate
- Sync-E Regenerator mode, providing PRC grade (ITU-T G.811) performance for smart pipe applications.
Frame Cut Through:
Controlled latency and PDV for delay sensitive applications
Management Interface:
1 x 10/100 BaseT (RJ-45)
Optical SFP Types:
Optical 1000Base-LX (1310 nm) or SX (850nm) Note: SFP devices must be of industrial grade (-40°C to +85°C)
Support:
SSM/ESMC Support for ring/mesh applications (ITU-T G.8264)
Ethernet Interfaces:
- Traffic Interfaces – 1 x 10/100/1000Base-T (RJ-45) and 1x1000base-X (SFP) or 10/100/1000 Base-T (Electrical SFP)
Ethernet Features:
- MTU – 9600 Bytes
SYNCHRONIZATION
Synchronization:
- Sync Distribution over any traffic interface (GE/FE)
- Sync-E (ITU-T G.8261, G.8262)
