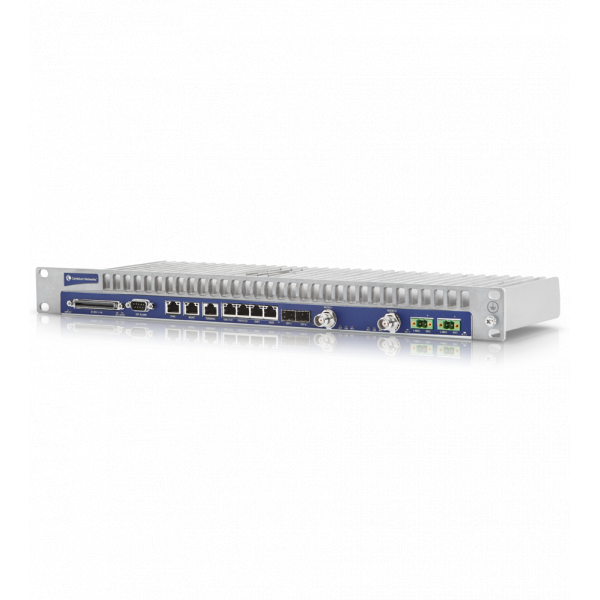

PTP 820G е устройство с разделен монтаж / вътрешен монтаж, с опции за множество носители.
PTP 820G
PTP 820G
Описание
Спецификации
RADIO
Channel Size:
- 3.5 MHz to 60 MHz
- XPIC
Protection:
- QPSK to 2048 QAM w/ACM
- 1+1 HSB
Radio:
- 6-38 GHz
- 1+0, 1+1 HSB, 2+0 (E/W), 2+0 XPIC, 2+0 MC-ABC
- Multi-Carrier Adaptive Bandwidth Control (up to 2+0)
ETHERNET
External Alarm Interface:
1 x DB9
Management Interface:
2 x 10/100 BaseT (RJ-45)
MTU:
- 9600 Bytes
- Multiple Classification criteria (VLAN ID, p-bits, IPv4, DSCP, IPv6 TC, MPLS EXP)
- 8 priority queues
- Deep buffering (configurable up to 64 Mbit per queue)
Optical SFP Types:
Optical 1000Base-LX (1310 nm) or SX (850nm)
Traffic Interfaces:
4 x 10/100/1000Base-T (RJ-45) and 2x1000base-X (SFP), 16 x E1/T1 (Optional MDR 69-pin)
TECHNICAL
Environmental:
IDU: -5°C to +55°C (-25°C to +65°C extended), RFU-C: -33°C to +55°C (-45°C to +60°C extended)
IDU Dimensions:
44mm(H), 426mm(W), 180mm(D), 2.5kg
RFU-C Dimensions:
– 200mm (H), 200mm (W), 85mm(D), 4kg
