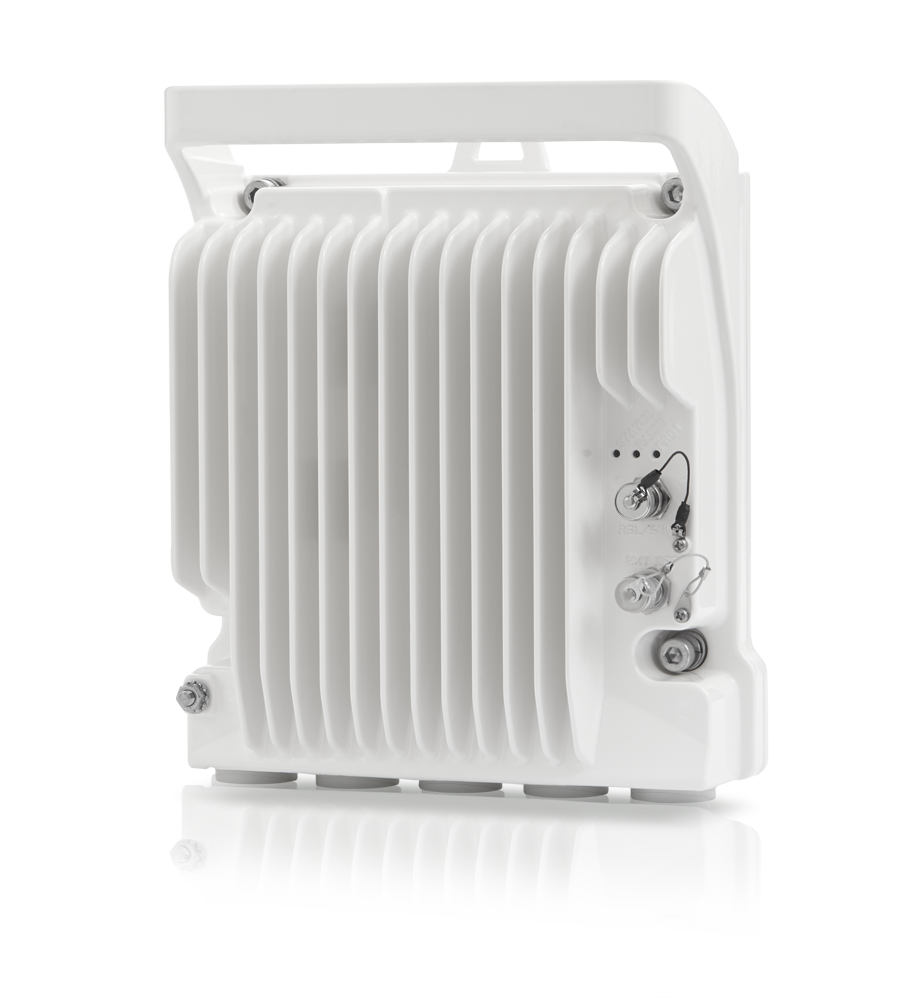

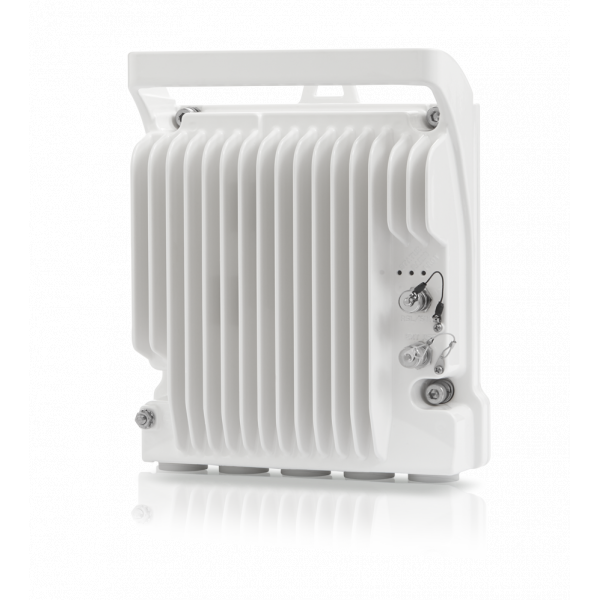

PTP 820S е лицензирано микровълново РТР устройство, предназначена само за работа на открито.
PTP 820S
PTP 820S
Описание
Спецификации
RADIO
Features:
- Advanced Frequency Reuse (AFR)
Frequency:
- 6-38 GHz
- 1+0, 1+1 HSB, 2+0
Protection:
- QPSK to 2048 QAM w/ACM
- Protection: 1+1 HSB
TECHNICAL
Dimensions:
230mm(H), 233mm(W), 98mm(D), 6.0kg
Environmental:
-33°C to +55°C (-45°C to +60°C extended)
Pole Diameter Range (for Remote Mount Installation):
8.89 cm – 11.43 cm
Power Input:
Standard Input: -48 VDC, IDU DC Input range: -40 to -60 VDC
