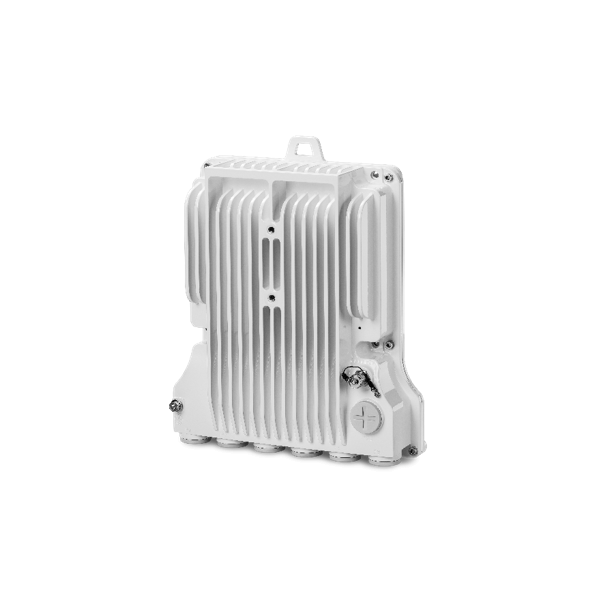

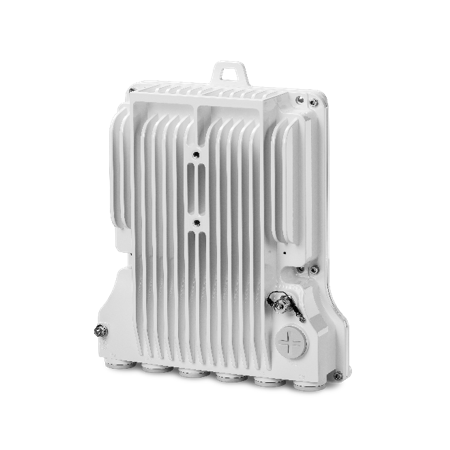

PTP 850C безжично решение в микровълновия обхват
PTP 850C е многоядрено устройство от следващо поколение, изцяло за инсталации на открито. PTP
850C е с двуядрена функционалност, която позволява на системата да работи с до 4 Gbps и да
предоставя Gigabit-plus капацитет.
PTP 850C
PTP 850C
Описание
Спецификации
RADIO
Radio Specs:
- 11-18 GHz
- 1+0 up to 4+0 Single/Dual Polarization, 1+1/2+2 HSB, 1+1/2+2 HSB-SD, 2+0 XPIC, 2x2+0 East/West Single/Dual Polarization
Radio Features:
- Enhanced Multi-Carrier ABC (up to 2+0)
- Protection: 1+1 HSB/2+2 HSB, 1+1 HSB-SD1
- High spectral utilization: BPSK to 4096 QAM w/ACM
- Channel bandwidth: 14 to 224 MHz2
ETHERNET
Ethernet Interfaces:
- Port 1: Planned for future release
- Port 2: RJ-45 - Electric Multi Rate 1/2.5/10 Gbps traffic interface/PoE port
- Port 3: SFP – 1/2.5G traffic interface and Dual band port
- Port 4: SFP – 1/10GE traffic interface/MIMO extension port (SFP+)
- Port 5: SFP – 1/10GE traffic interface (SFP+)
- Port 6: RJ-45 – Management/Protection interface - 100 Base-T
- Note: SFP and SFP+ devices must be of industrial grade (-40°C to +85°C)
Ethernet Features:
- MTU – 9612 Bytes
- Radio Spectral Efficiency: EN 302 217-2-2
- Storage: ETSI EN 300 019-1-1 Class 1.2
- Transportation: ETSI EN 300 019-1-2 Class 2.
- Ingress Protection: IP67
TECHNICAL
Mechanical Specs:
- Dimensions (Direct Mount): 322mm(H), 227/270mm(W), 86mm(D), 5.5kg
- Pole Diameter Range (for Remote Mount Installation): 8.89 cm – 11.43 cm
Environmental Spec:
-33°C to +55°C (-45°C to +60°C extended)
Power Input Specifications:
- Standard Input: -48 VDC
- DC Input range: -40.5 to -60 VDC
