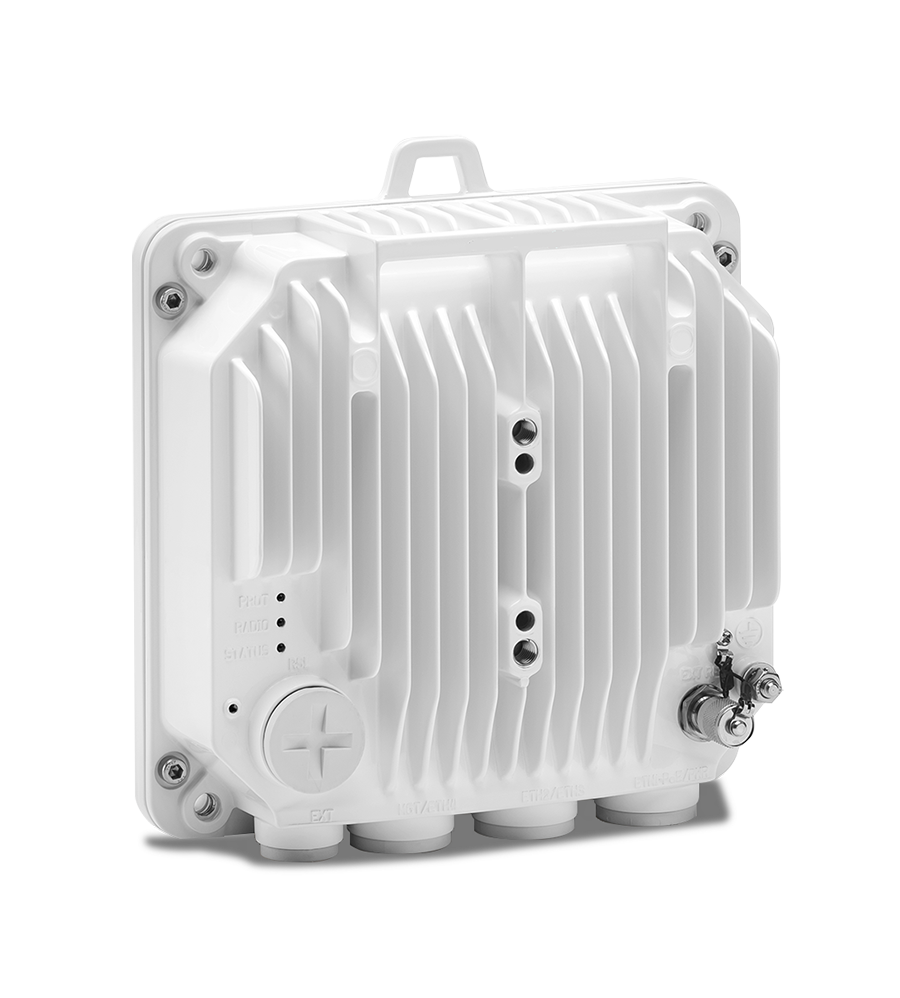

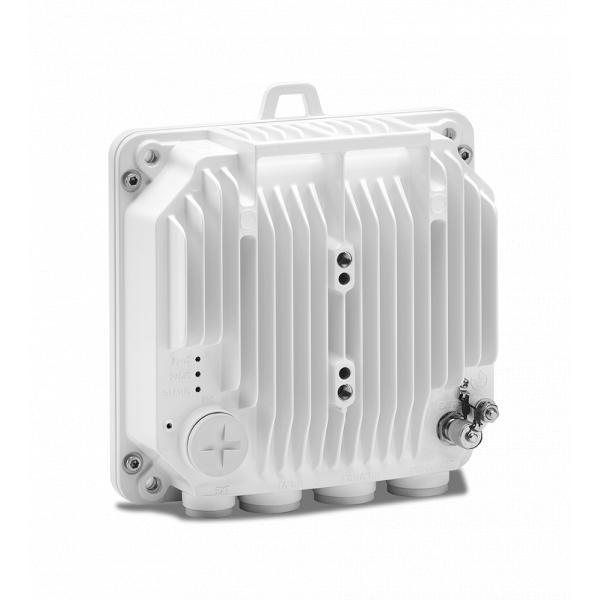

PTP 850S is next generation all-outdoor point-to-point licensed microwave unit for single core unit. PTP 850S can deliver up to 2 Gbps plus capacity.
PTP 850S
PTP 850S
Описание
Спецификации
SECURITY
Security:
- Secured protocols (HTTPS, SNMPV3, SSH, SFTP)
- RADIUS authentication and authorization
- TACACS+ authentication and authorization (session-based)
- AES Encryption – AES 256
RADIO
Radio Specs:
- 11-18 GHz
- 1+0, 2+0 (non-XPIC)
Radio Features:
- High spectral utilization: BPSK to 4096 QAM w/ACM
- Channel bandwidth: 14 to 224 MHz
- Multiband (with PTP-820E or PTP- 850E)
- Protection: 1+1 HSB
ETHERNET
Ethernet Interfaces:
- Port 1: Electric: 10/100/1000Base-T RJ-45
- Port 2: SFP cage which supports – Regular and CSFP standards
- SFP+ cage supporting a 10G single ETH interface.
- Note: SFP+ and QSFP+ devices must be of industrial grade (-40°C to +85°C)
Ethernet Features:
- MTU – 9612 Bytes
- 4K VLANs
- VLAN add/remove/translate
- Y.1731 Ethernet OAM
- Y.1731 Ethernet Bandwidth Notification (ETH-BN)
