Available in 2.4 GHz the PMP 450 Access Point (AP) delivers consistent and exceptionally high throughput – more than 200 Mbps per sector and more than 1 Gbps per tower.

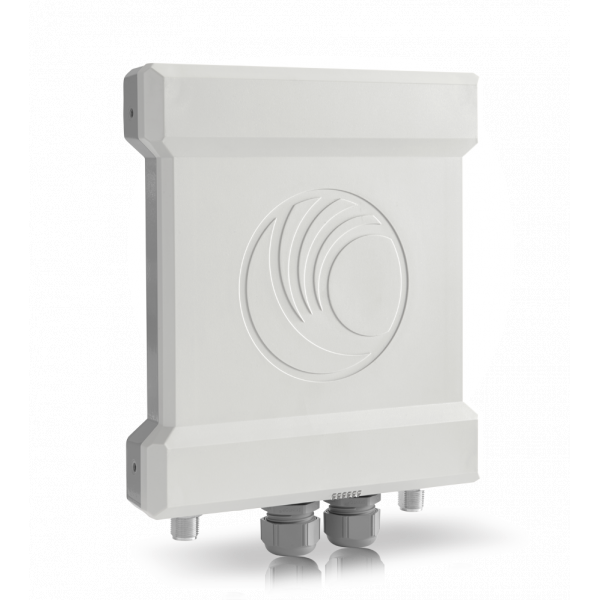

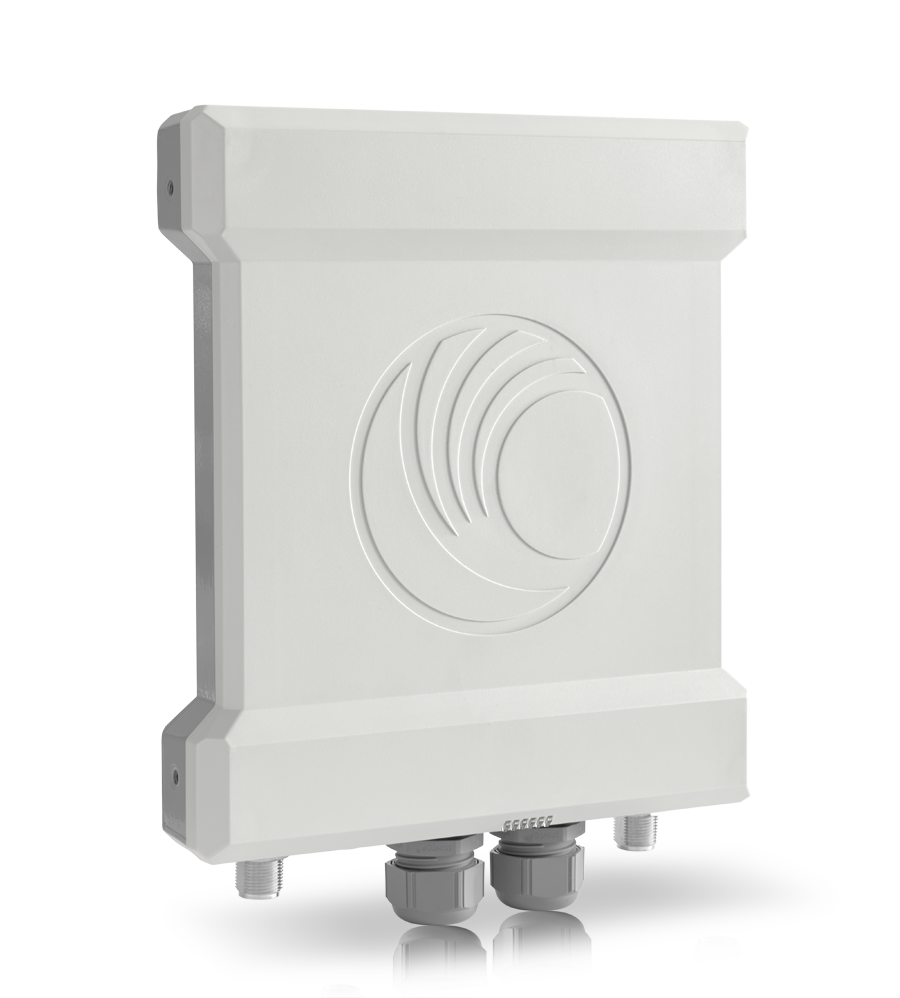

2.4 GHz PMP 450 Connectorized Fixed Wireless Access Point
2.4 GHz PMP 450 Connectorized Fixed Wireless Access Point
Описание
Спецификации
SPECTRUM
Channel Spacing:
Selectable on 2.5 MHz increments
Frequency Range:
- 2400 - 2483.5 MHz
Channel Width:
5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
INTERFACE
Ethernet Interfaced:
10/100/1000BaseT, half/full duplex, rate auto negotiated (802.3 compliant)
Network Management:
HTTP, HTTPS, Telnet, FTP, SNMP v3 (add line between this & v LAN)
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
PERFORMANCE
ARQ:
Yes
Maximum Deployment Range:
Up to 40 miles
Subscribers Per Sector:
Up to 238
SECURITY
Encryption:
56-bit DES, FIPS-197 128-bit AES
PHYSICAL
Dimensions (HxWxD):
27 x 21 x 7 cm (10.6” x 8.3” x 2.8”)
Environmental:
IP67, IP66
Temperature:
-40°C TO +60°C (-40°F TO +140°F), 0-95% non-condensing
Weight:
2.5 kg (5.5 lbs)
LINK BUDGET
Antenna Beam Width :
2.4 GHz - 60° Sector (Dual Slant) 3 GHz - 90° Sector (Dual Slant)
Transmit Power Range:
-30 TO +22 dBm (combined, to EIRP limit by region) (1 dB interval) (+25 dBm FOR 3 GHz)
