Up to 300 Mbps in a 40 MHz channel. Frequency range is 3 GHz.

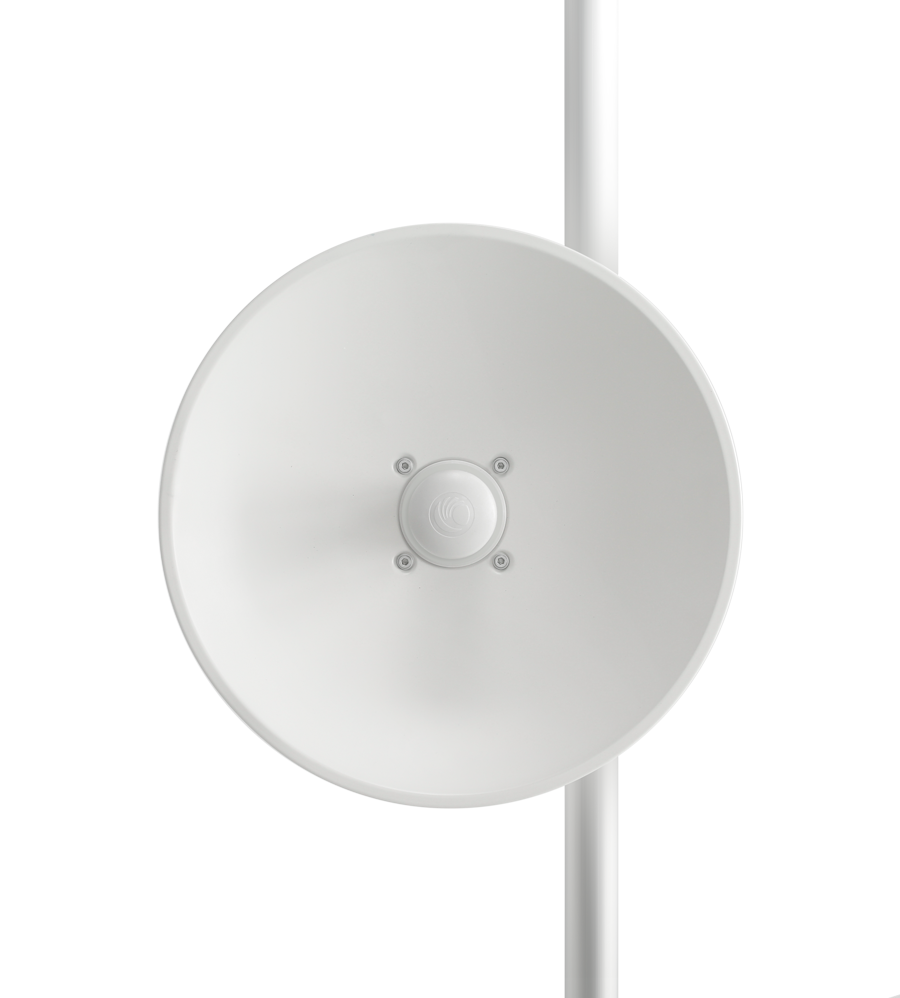

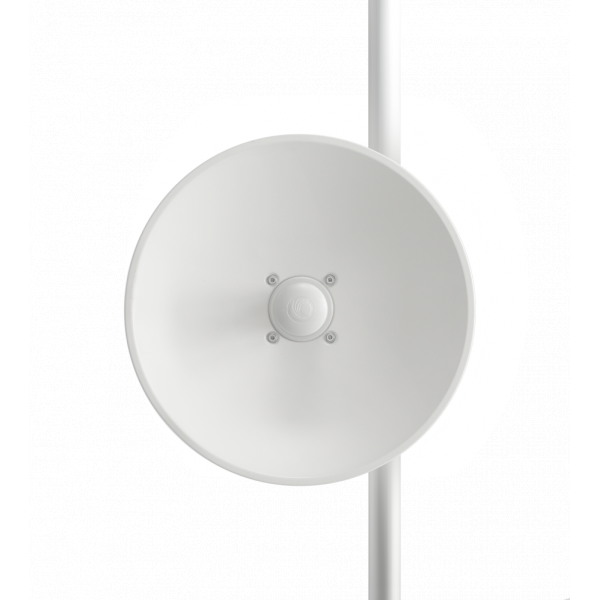

3 GHz PMP 450b High Gain Subscriber Module
3 GHz PMP 450b High Gain Subscriber Module
Описание
Спецификации
SPECTRUM
Channel Spacing:
Configurable on 2.5 MHz increments
Frequency Range:
- 3 GHz
Channel Width:
5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
INTERFACE
Ethernet Interfaced:
100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant
MAC (Media Access Control) Layer:
Cambium Networks proprietary
MTU:
1700 bytes
Network Management:
IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
VLAN:
802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
SECURITY
Encryption:
FIPS-197 128-bit AES, 256-bit AES (optional)
