The PMP 450b Subscriber Module supports frequencies from 4.9 – 5.925 GHz and provides 300 Mbps aggregate throughput in a 40 MHz channel.

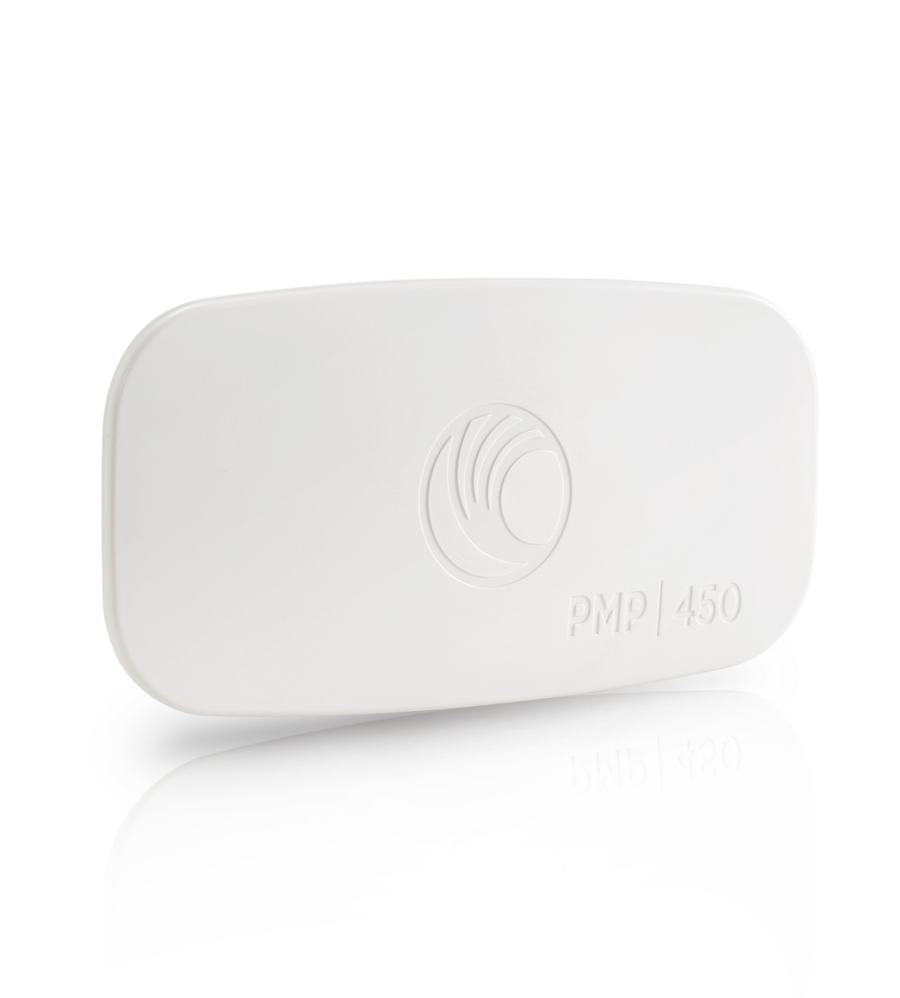

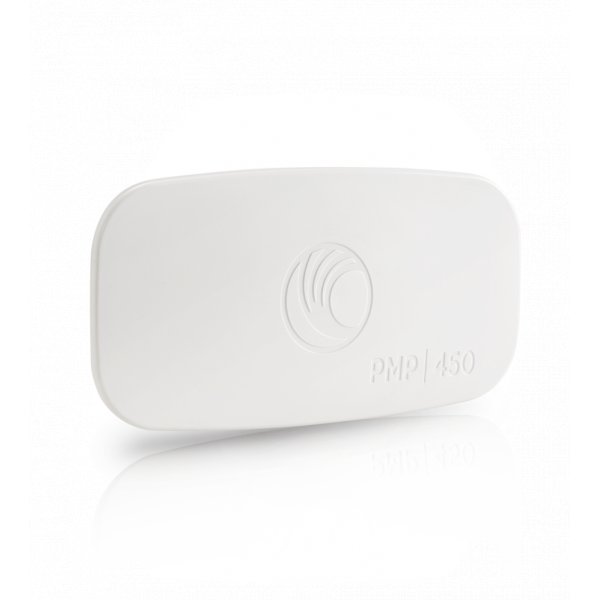

5 GHz PMP 450b Mid-gain Subscriber Module
5 GHz PMP 450b Mid-gain Subscriber Module
Описание
Спецификации
SPECTRUM
Channel Spacing:
Configurable on 2.5 MHz increments
Frequency Range:
- 4900 - 5925 MHz
Channel Width:
5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
INTERFACE
Ethernet Interfaced:
100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
PERFORMANCE
GPS Synchronization:
Yes, synchronized by Access Point
Maximum Deployment Range:
Up to 40 miles (64 km)
Quality of Service:
Diffserv QoS
SECURITY
Encryption:
FIPS-197 128-bit AES, 256-bit AES (optional)
PHYSICAL
Dimensions (HxWxD):
12.5 x 24.8 x 12 cm (4.9” x 9.8” x 4.7”)
Environmental:
IP55
Weight:
0.6 kg (1.4 lb.) (includes mounting bracket)
