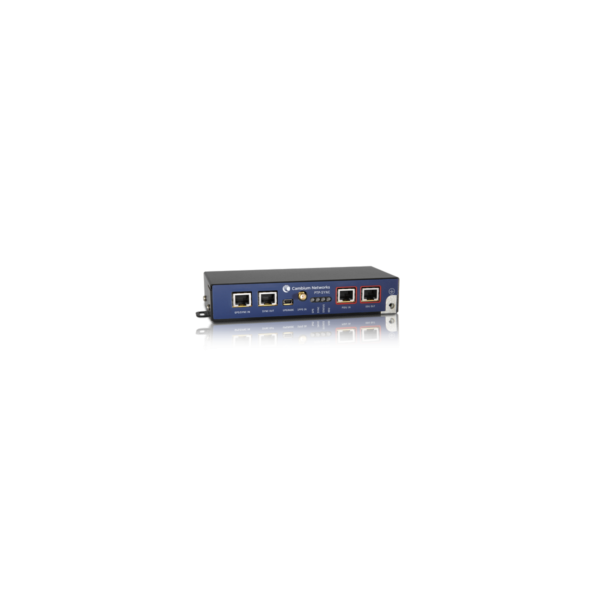

Designed for PTP 650 Series, the PTP Sync Unit module synchronizes multiple PTP 650 connections by providing a common clock signal and GPS signal reference.
9 LBS / 4 KG
9 LBS / 4 KG
Описание
Спецификации
RADIO TECHNOLOGY
System Configuration:
One PTP-SYNC unit per link; up to 10 PTP-SYNC units can be daisy-chained to one timing source
Timing Input Signal:
1 Hz or 1 PPS (pulse per second) received from a timing device (GPS module, CMM or other synchronized timing device); PTP-SYNC unit can maintain local synchronization between collocated radios when timing is unavailable
PHYSICAL
Humidity:
Up to 95% non-condensing
Operating Voltage:
+39.0 V to +60.0 V, measured at the terminals of the unit
Dimensions:
Width 7.1” (180 mm), Height 1.4” (35 mm), Depth 3.1” (80 mm), Weight 1.32 lbs (0.6 kg)
Operating Temperature:
-40° to +140° F (-40° to +60° C), including solar radiation
Power Supply:
Integrated with Indoor Unit
Power Consumption:
1.5 W max at the terminals of the unit
POWERING
Cable:
Standard Cat-5e
Connection:
Standard RJ-45
Led Indicator:
Power status, GPS and SYNC activity
Powering:
56 V DC, phantom powering from PIDU/ODU cable
