PMP 450i 900 MHz allows for deep frequency propagation that suits the needs of rural broadband deployments, SCADA and sensor data backhaul, and even video surveillance applications. Available as Subscriber Module or Access Point.

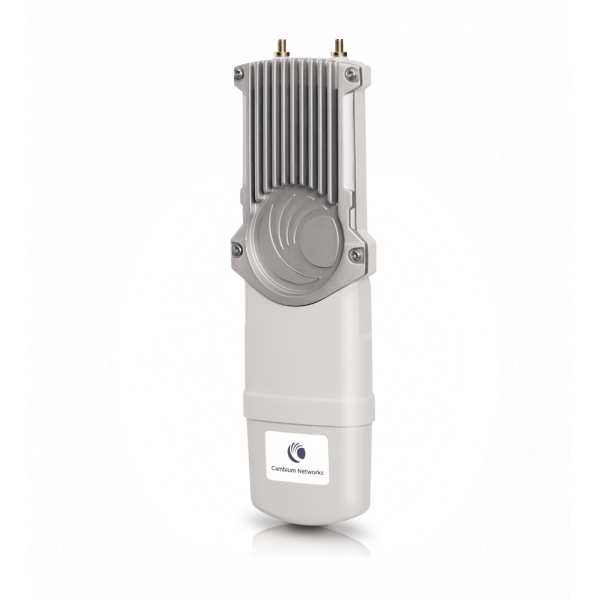

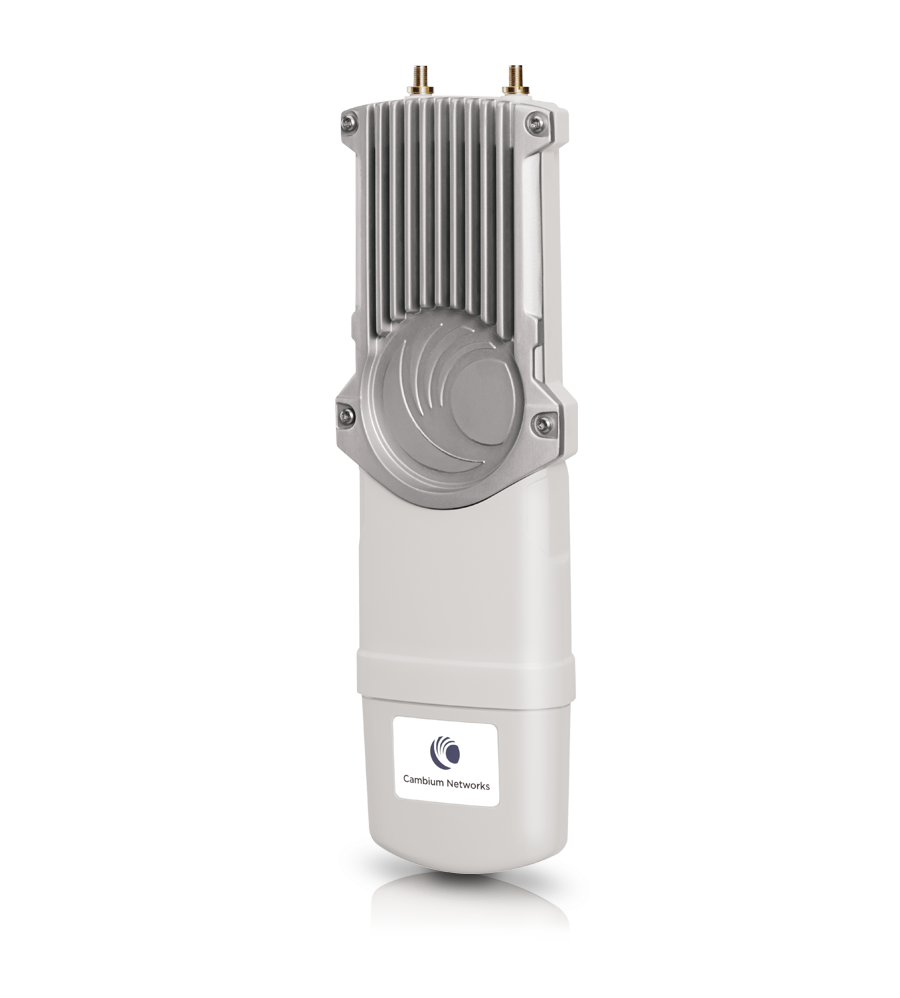

900 MHz PMP 450 Connectorized Subscriber Module
900 MHz PMP 450 Connectorized Subscriber Module
Описание
Спецификации
SPECTRUM
Channel Spacing:
Configurable on 0.5 MHz increments
Frequency Range:
- 902 - 928 MHz
Channel Width:
5 MHz, 7 MHz, 10 MHz, 15 MHz or 20 MHz
INTERFACE
Ethernet Interfaced:
100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant (SM is 10/100BaseT only)
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
PERFORMANCE
GPS Synchronization:
Yes, via Autosync (CMM4 or UGPS)
Maximum Deployment Range:
Up to 120 miles (190 km)
Subscribers Per Sector:
238
SECURITY
Encryption:
56-bit DES, FIPS-197 128-bit AES
PHYSICAL
Dimensions (HxWxD):
Access Point: 26 x 13.4 x 6.4 cm (10.3” x 5.3” x 3.3”) Subscriber Module: 30 x 9 x 5 cm (11” x 3.5” x 2”)
Environmental:
AP: IP 66, 67 SM: IP55
Weight:
Access Point: 1.8 kg (4 lbs.) Subscriber Module: 0.45 kg (1 lb.)
