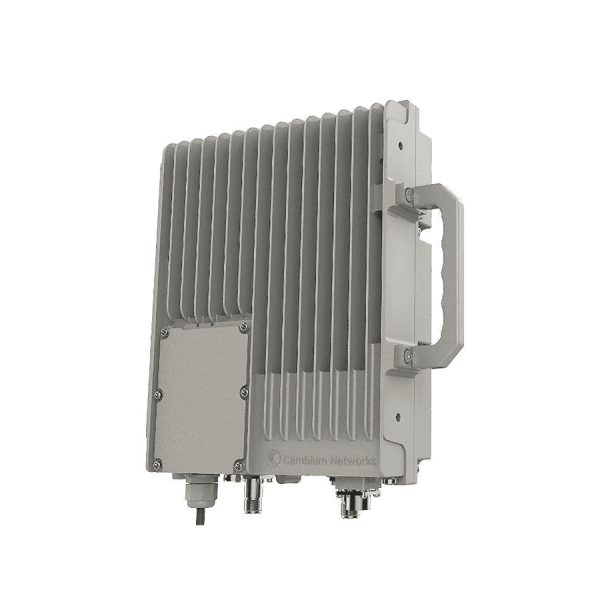

The cnRanger™ 2×2 RRH supports frequency range 2300-2700 (LTE bands 38, 40, 41) and 2W per port. The RRH is IP66/67 rated and designed to withstand harsh outdoor environments and temperature extremes. The RRH is fully controlled and managed by the BBU via CPRI interface and can be mounted directly on to the Cambium 2.5 GHz sector antenna or to a pole/mast with an optional mounting adapter.
cnRanger RRH
cnRanger RRH
Описание
Спецификации
SPECTRUM
Frequency Range:
- 2300 - 2700 MHz, Bands 38, 40, 41
Channel Width:
5 MHz (future release), 10 MHz, 15 MHz (future release), 20 MHz
INTERFACE
BBU Interface:
SFP+ / CPRI v7.0 Fiber cable: NOOOOOOL131A, pre-terminated, 2m cable
DC Power:
Power cable NOOOOOOL130A, two conductor plus ground
Physical Layer:
2x2 MIMO OFDMA, SC-FDMA
PHYSICAL
Antenna Connection:
2 N-Type
Environmental:
IP67
Optional Mounting Kit:
1.5" to 3.0" (38 to 76 mm) pole NOOOOOOL128A
Surge Suppression:
EN61000-4-5: l.2us/50us, 500 V voltage waveform
