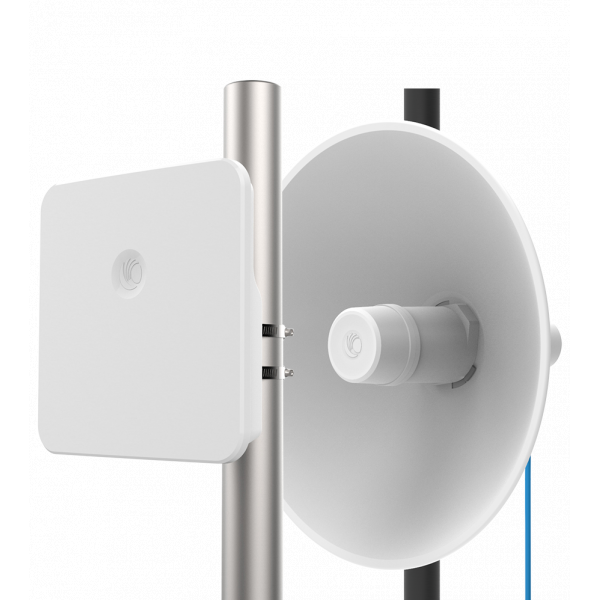

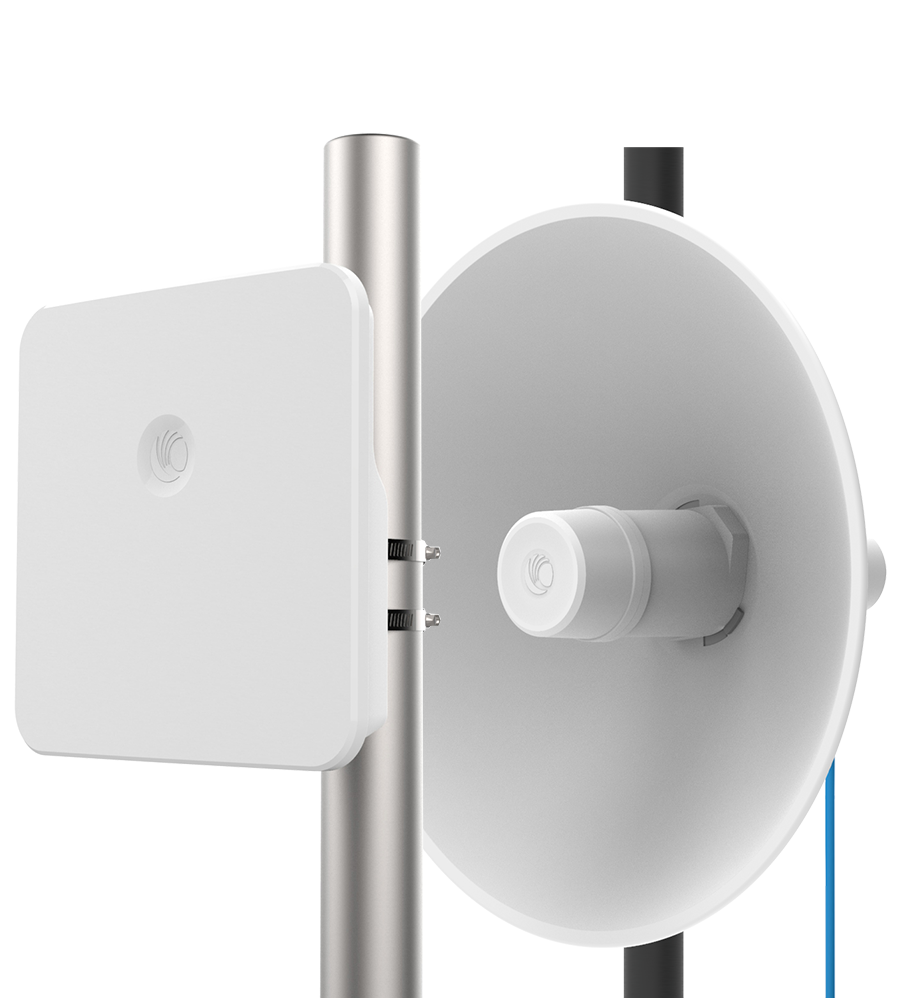

The cnRanger™ Subscriber Modules (SM) are highly compact and cost-effective LTE Customer Premise Equipment (CPE) designed for ease of installation, onboarding, management, and monitoring. Available as 2.5 GHz Cat 4 integrated flat panel, or a High Gain integrated parabolic reflector dish (for either 2.5 GHz or 3 GHz (including CBRS). These SMs optimize range and coverage, while removing the complexity normally associated with LTE equipment. The SMs accept standard LTE SIM cards (including cnRanger SIMs) and are designed with robust quality to withstand the elements. The SMs ship with a bundled POE injector.
cnRanger SM
cnRanger SM
Описание
Спецификации
SPECTRUM
Channel Spacing:
1 MHz as specified in the BBU
MTU:
1500
Network Management:
HTTP, HTTPS, SSH, cnMaestro
Protocols Used:
IPv4, UDP, TCP, IP, ICMP
Frequency Range:
- LTE Band 38: 2570-2620 MHz
- LTE Band 40: 2300-2400 MHz
- LTE Band 41: 2496-2690 MHz
Channel Width:
5 MHz (future release), 10 MHz, 15 MHz (future release), 20 MHz
INTERFACE
MAC (Media Access Control) Layer:
TDD-LTE Advanced Release 10
PERFORMANCE
HARQ:
Yes
PPS:
TBD
Ultimate Sensitivity:
-98 dBm
