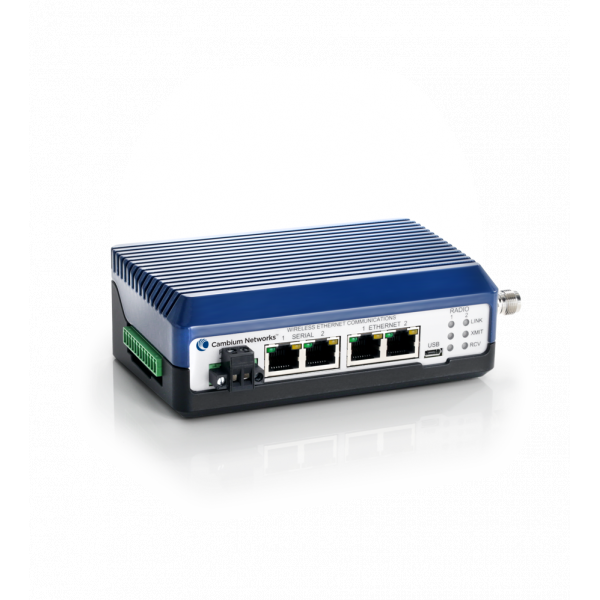

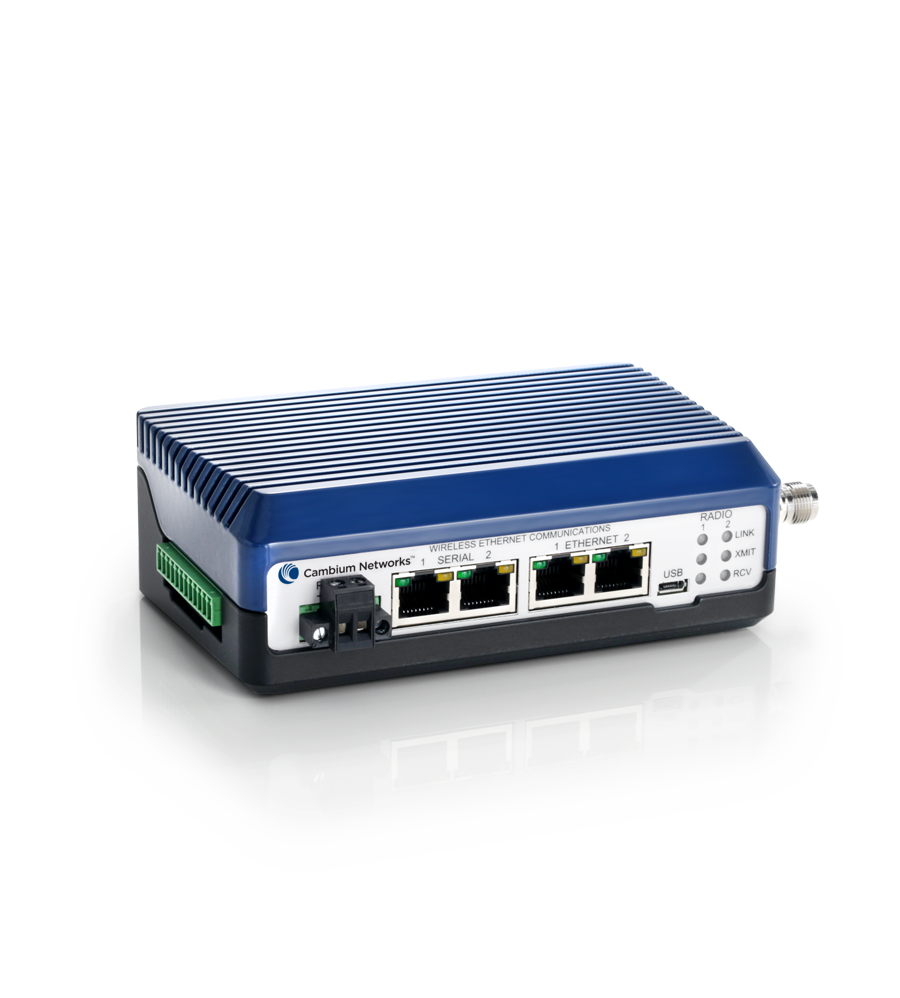

cnReach N500 220 MHz

The cnReach N500 220 MHz enables connectivity in the most diverse environments.

N500 220 MHz provides reliable licensed band connectivity with extensive I/O capabilities to ease migration to all-IP networks and has dual radio options, a 5 W output power and adaptive modulation.

научи повече Къде да купя

Описание

The cnReach N500 220 MHz enables connectivity in the most diverse environments.

N500 220 MHz provides reliable licensed band connectivity with extensive I/O capabilities to ease migration to all-IP networks and has dual radio options, a 5 W output power and adaptive modulation.

Спецификации

INTERFACE

Ethernet Interfaces:
  • 2 x RJ-45
  • 10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)
  • S-232/422/485, up to 230.4 kbps
Serial Interfaces:
2 x RJ-45 RS-232/422/485, up to 230.4 kbps

PERFORMANCE

Frequency Range:
217 - 222 MHz (FCC Part 90: 217-220 Mhz; FCC Part 90: 220-222 MHz; FCC Part 80: 217-218 and 219-220 MHz)
Output Power:
Up to 5W (37 dBm); FCC Part 90: 217-220 MHz = 2W; FCC Part 90: 220-222 MHz up to 5W depending on channel size; FCC Part 80: 2W

MANAGEMENT

Management:
  • Web-based Interface via HTTP/HTTPS
  • Remote Management via SNMP
  • Support for configuration files, remote software upgrades
  • cnMaestro integration (roadmap)
  • LINKPlanner integration (capacity and availability planning)
  • Built-in diagnostic tools via web interface such as RF Ping and RF Throughput

PHYSICAL

DIN Rail Mount:
optional
Dimensions:
6.625” x 3.45” x 1.835” (168 mm x 876 mm x 466 mm)
Weight:
Single Radio Configuration 1.54 lbs. (0.70 kg), Dual Radio Configuration 1.61 lbs. (0.73 kg)

DATA CAPABILITIES

Data Capabilities:
  • Layer 3 static routes
  • VLAN support
Data Encryption:
128/256-bit AES
Packet handling:
  • Layer 2 bridge

ENVIRONMENTAL

Humidity:
95% operating humidity @ 40C non-condensing
Operating Temperature:
-40C to +60C
