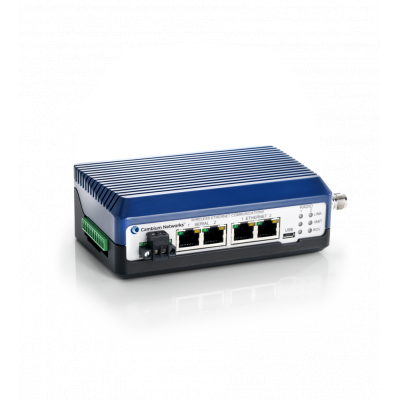

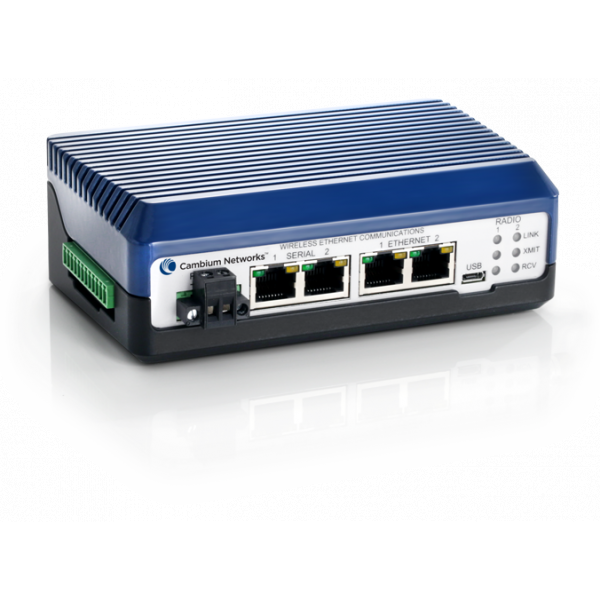

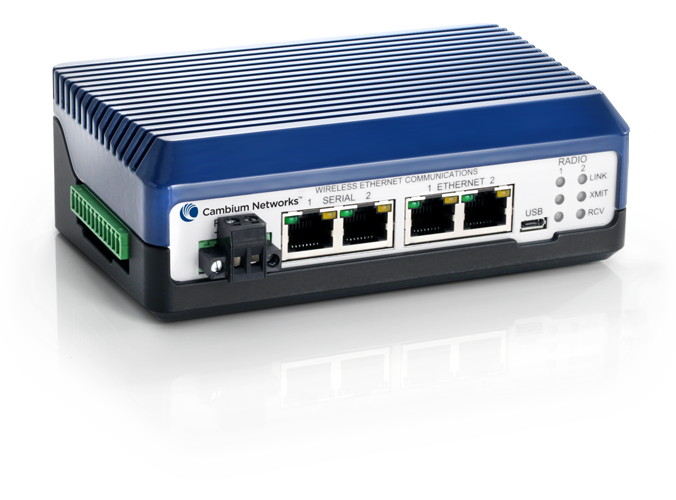

cnReach N500 IO Expander

Use the cnReach N500 IO Expander to add these capabilities to any layer 2 radios such as the PTP 650, PTP 450i and PMP 450i SM’s or to add additional IO expansion to cnReach networks.

The cnReach™ IO Expander has a rich set of IO features (2 x Ethernet, 2 x Serial and 8 General-purpose IO pins) that increases the number of applications and data sources that can be served by wireless networks.

научи повече Къде да купя

Описание

Use the cnReach N500 IO Expander to add these capabilities to any layer 2 radios such as the PTP 650, PTP 450i and PMP 450i SM’s or to add additional IO expansion to cnReach networks.

Спецификации

INTERFACE

Analog/Digital I/O:

12 pins for 8 IO channels and 4 grounds (analog input/output and digital input/output)

Ethernet Interfaces:

2 x RJ-45
10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)

Serial Interfaces:

2 x RJ-45 RS-232/422/485, up to 230.4 kbps

MANAGEMENT

Management:

Web-based Interface via HTTP/HTTPS
Remote Management via SNMP
Support for configuration files, remote software upgrades
cnMaestro integration (roadmap)

PHYSICAL

Dimensions:

6.625” x 3.45” x 1.835” (168 mm x 876 mm x 466 mm)

Weight:

1.54 lbs. (0.70 kg)

DATA CAPABILITIES

Packet handling:

Layer 2 bridge and/or Layer 3 static routes
VLAN support

ENVIRONMENTAL

Humidity:

95% operating humidity @ 60C non-condensing

Operating Temperature:

-40C to +70C

POWER

Input:

10-32VDC with reverse polarity protection

Power Consumption:

293 mA
