The ePMP™ 1000 Connectorized Radio has the flexibility to connect to a variety of external antennas such as 90 and 120 degree sector, omni, and high-gain panel or dish antennas.
This versatility allows service providers to configure their network using high gain antennas to endure challenging environments. The ePMP 1000 Connectorized Radio can be configured as a Subscriber Module, an unsynchronized Access Point or a Backhaul radio.

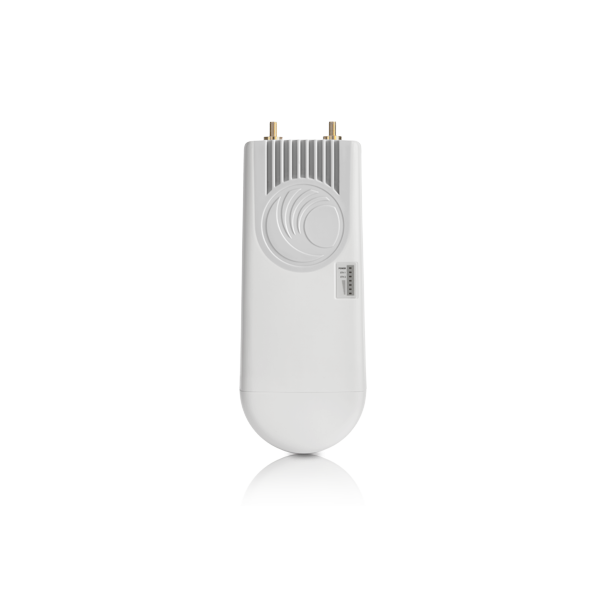

ePMP 1000 Connectorized Radio
ePMP 1000 Connectorized Radio
Описание
Спецификации
SPECTRUM
Channel Spacing:
Configurable on 5 MHz increments
Frequency Range:
- 5 GHz: 4910 – 5970 MHz (exact frequencies as allowed by local regulations) 2.4 GHz: 2402 – 2472 MHz
Channel Width:
5 | 10 | 20 | 40 MHz
INTERFACE
Ethernet Interfaced:
100 BaseT, Cambium PoE (V+ = pins 7 & 8, Return = pins 4 & 5)
MAC (Media Access Control) Layer:
Cambium Proprietary
Network Management:
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
VLAN:
802.1Q with 802.1p priority
PERFORMANCE
ARQ:
Yes
Modulation Levels (Adaptive):
MCS0 (BPSK) to MCS15 (64QAM 5/6)
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel:
MCS0 = -93 dBm to MCS15 = -69 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel:
MCS0 = -90 dBm to MCS15 = -66 dBm (per branch)
Quality of Service:
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Addr, Broadcast, Multicast and Station Priority
SECURITY
Encryption:
128-bit AES (CCMP mode)
PHYSICAL
Antenna Connection:
50 ohm, RP (Reverse Polarity) SMA (2)
Dimensions (HxWxD):
29.1 x 14.5 x 8.3 cm (11.4 x 5.7 x 3.3 in)
Environmental:
IP55
Input Voltage:
10 to 30 V
Surge Supression:
1 Joule Integrated
Temperature:
-30°C to +60°C (-22°F to +140°F)
Wind Survival:
145 km/hour (90 mi/hour) when mounted on ePMP Sector Antennas
Power Consumption:
7 W Maximum, 5 W Typical
LINK BUDGET
Transmit Power Range:
17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
CERTIFICATIONS
CE:
5.4 GHz EN 301 893 V2.1.1 5.8 GHz EN 302 502 V2.1.1
FCCID:
2.4 GHz: Z8H89FT0011 / 5 GHz : Z8H89FT0006
Industry Canada Cert:
2.4 GHz: 109W-0011 / 5 GHz : 109W-0006
