ePMP 3000

Описание

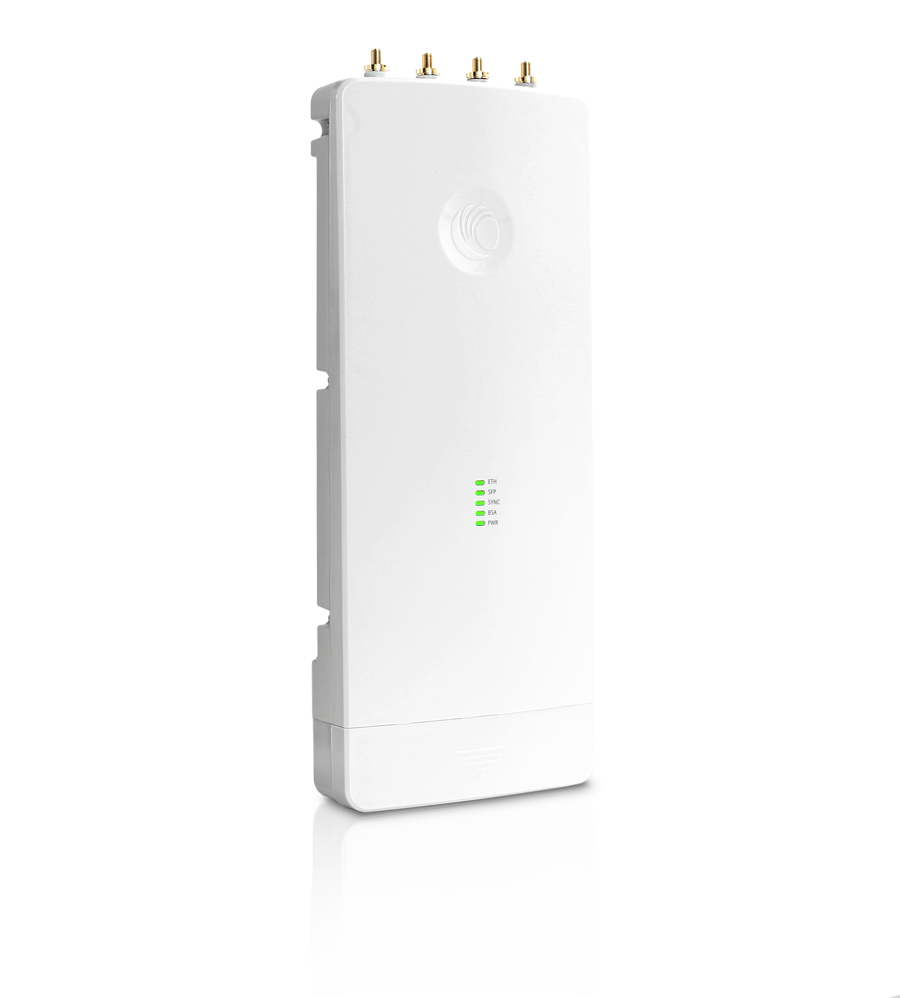

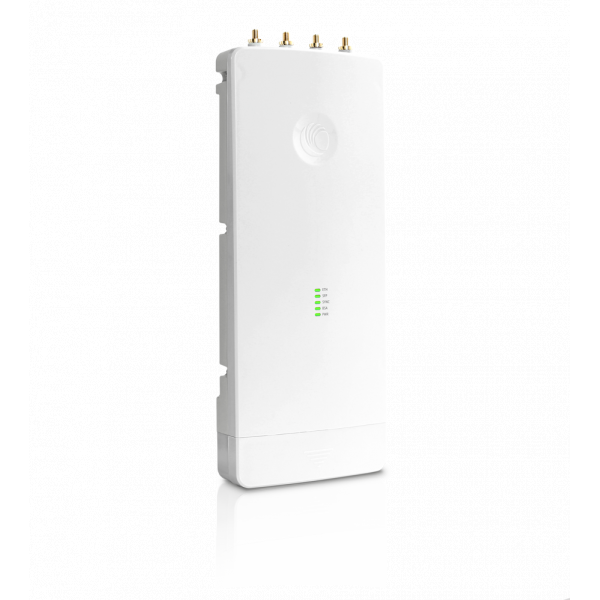

Cambium Networks’ ePMP™ product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price. The ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO). The ePMP 3000 is a 4X4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.

Спецификации

SPECTRUM

Channel Spacing:

Configurable in 5 MHz increments

Frequency Range:

4910 – 5980 MHz (exact frequencies as allowed by local regulations)

Channel Width:

20 | 40 | 80 MHz

INTERFACE

Ethernet Interfaced:

100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port

MAC (Media Access Control) Layer:

Cambium Proprietary

Network Management:

HTTPS, SNMPv2c, SSH

Physical Layer:

4X4 MUMIMO/OFDM

Powering Methods Supported:

56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter

Protocols Used:

IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping

VLAN:

802.1Q with 802.1p priority

PERFORMANCE

ARQ:

Yes

DSO:

Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel

Fast DFS:

Change to alternate radar free channel with background availability check

GPS Synchronization:

Yes, via Internal GPS or Cambium Sync (Internal GPS receiver also contains a patch antenna and can be used without the external puck antenna)

Modulation Levels (Adaptive):

MCS0 (BPSK) to MCS 9 (256 QAM 5/6)

Nominal Receive Sensitivity (w/FEC) @20 MHz Channel:

MCS 0 , -92 MCS 8 supported by Wi-Fi -68

Nominal Receive Sensitivity (w/FEC) @40 MHz Channel:

MCS0, -89 MCS9, -64

Nominal Receive Sensitivity (w/FEC) @80 MHz Channel:

MCS0, -86, MCS9 - 61

Quality of Service:

Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support*

Subscribers Per Sector:

Up to 120
