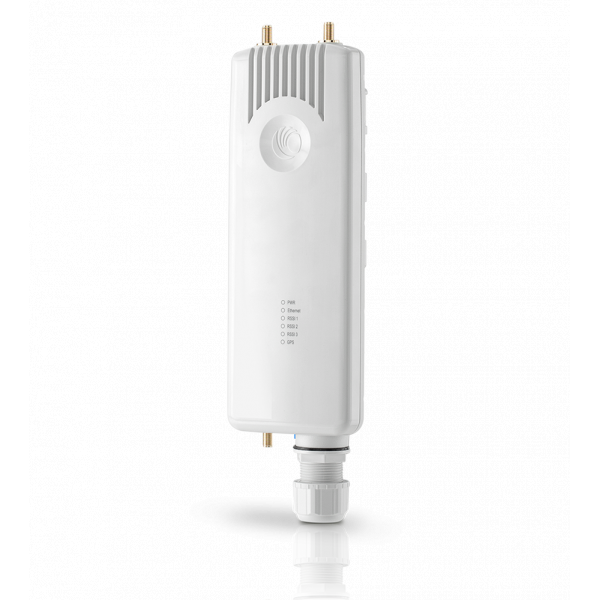

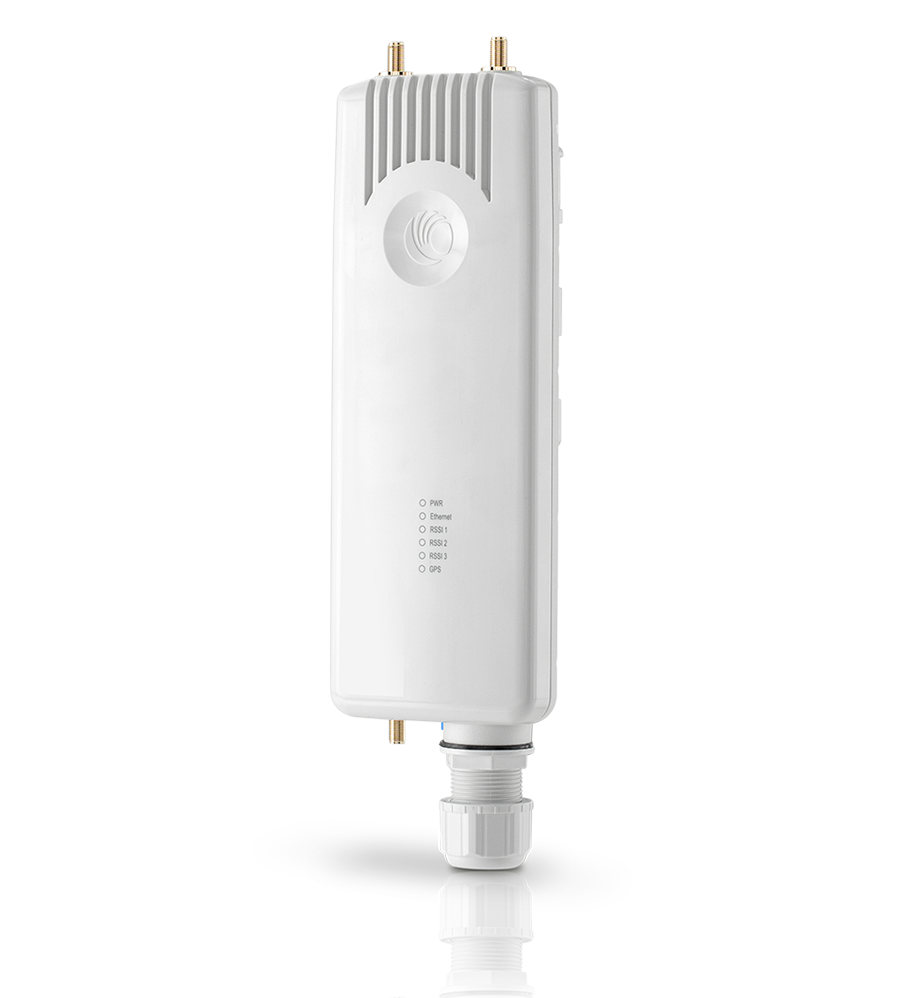

ePMP 3000L Fixed Wireless Access Point

Cambium Networks’ ePMP™ product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price. The ePMP 3000L is the third generation access point (AP) that carries on the interference tolerance mechanisms with an emphasis on high-performance in low-density point to multipoint sectors.

научи повече Къде да купя

Описание

Key Advantages

  • MicroPOP Applications: ePMP 3000L is ideally suited for areas with low density or small numbers of subscribers. With support for narrow-band sectors and omnis, coverage can be added exactly where needed.
  • Frequency Reuse: Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
  • Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler the ePMP 3000L supports high performance and low consistent latency to subscribers.

Key Specifications

  • 2X2 MIMO support with peak throughput of 600 Mbps
  • 256QAM-5/6, 80 MHz support
  • Supports a wide frequency range: 4910 to 5950 MHz
  • Frequency re-use with GPS sync and interference mitigation
  • Connectorized for use with sector antenna. Also compatible with RF Elements Twistport(tm) Adaptor for ePMP
  • Cloud or on-premises network management with cnMaestro

Спецификации

SPECTRUM

Channel Spacing:
Configurable in 5 MHz increments
Frequency Range:
  • 4910 - 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width:
20 | 40 | 80 MHz

INTERFACE

MAC (Media Access Control) Layer:
Cambium Networks proprietary
Physical Layer:
2x2 MIMO OFDM

PERFORMANCE

ARQ:
Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel:
MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel:
MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel:
MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
