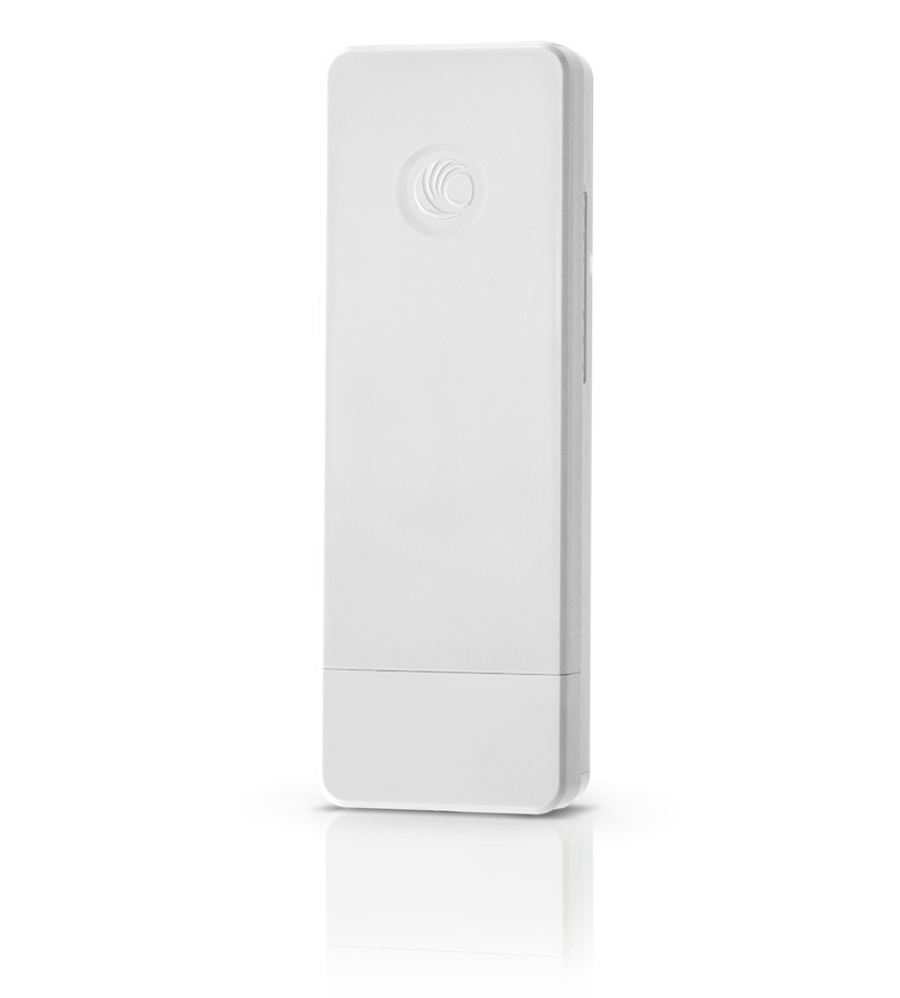

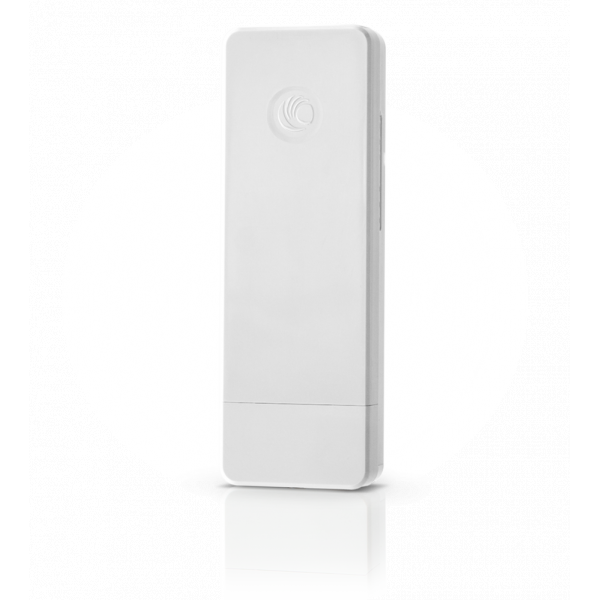

ePMP Force 130 5 GHz

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Описание

Features

  • Cambium Networks’ ePMP™ Force 130 5 GHz is an affordable subscriber module particularly well-suited for markets where price is key.
  • The ePMP Force 130 5 GHz is designed to operate in high interference environments and provides throughput of up to 140 Mbps
    with bi-directional traffic of real user data.
  • Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing
    high performance and low round-trip latency.
  • QoS management offers outstanding quality for triple play services – VoIP, video and data and provides three levels of
    traffic priority.
  • The ePMP Force 130 is available in both 5 GHz and 2.4 GHz options. (See 2.4 GHz spec sheet for additional details on that band.)
  • Installation is a breeze for pole and wall mounting.
  • The ePMP Force 130 5 GHz is compatible with ePMP 1000 and ePMP 2000 Access Points. It also inter-operates with the ePMP 3000 in
    backwards compatible 802.11n mode.
  • The ePMP Force 130 is available in EMEA, CALA and APAC regions where type approved. It is NOT avaialble in North America.


Спецификации

SPECTRUM

Channel Spacing:
Configurable in 5 MHz increments
Frequency Range:
  • 5150 - 5970 MHz
Channel Width:
5 | 10 | 20 | 40 MHz

INTERFACE

Ethernet Interfaced:
10/100 BaseT
MAC (Media Access Control) Layer:
Cambium Proprietary
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4, IPv6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, 24V POE, IGMP Snooping

PHYSICAL

Environmental:
IP55
Surge Suppression:
1 Joule Integrated
Temperature:
-30°C to +55°C (-22°F to +122°F)
Wind Survival:
125 km/hour (78 mi/hour)
Weight:
0.35 kg (0.88 lbs)
