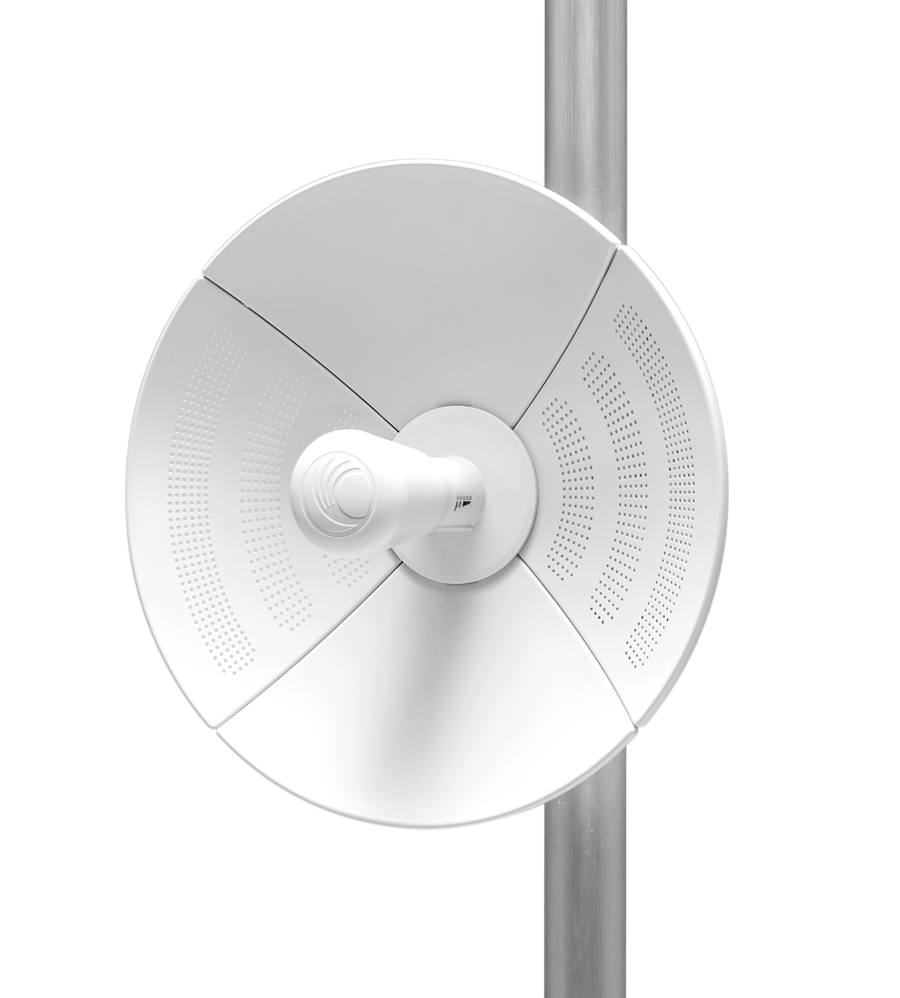

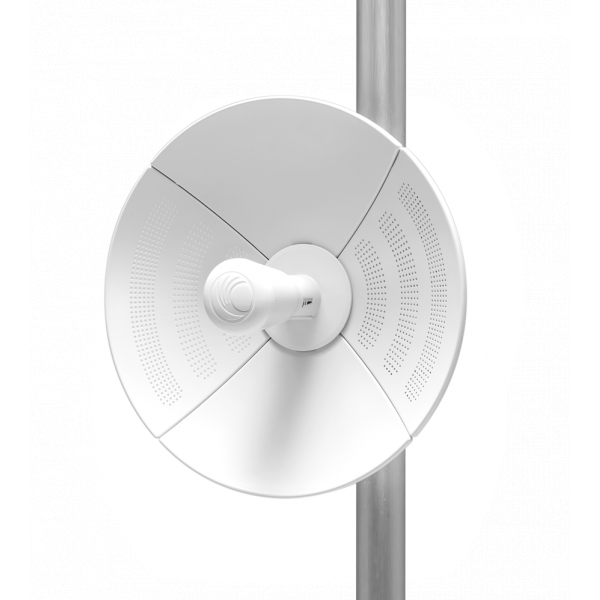

The ePMP™ Force 190 provides up to 200 Mbps throughput and low latency with a high gain antenna in a compact design.
ePMP Force 190
ePMP Force 190
Описание
Спецификации
SPECTRUM
Channel Spacing:
Configurable in 5 MHz increments
Frequency Range:
- 4910 - 5970 MHz, 4.9 only for ROW
Channel Width:
5 | 10 | 20 | 40 MHz
INTERFACE
Ethernet Interfaced:
10/100 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
MAC (Media Access Control) Layer:
Cambium Proprietary
Network Management:
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
VLAN:
802.1Q with 802.1p priority
PERFORMANCE
Antenna Gain:
22dBi
ARQ:
Yes
Modulation Levels (Adaptive):
MCS0 (BPSK) to MCS15 (64QAM 5/6)
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel:
MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel:
MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Quality of Service:
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range:
-15 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)
SECURITY
Encryption:
128-bit AES (CCMP mode)
PHYSICAL
Dimensions (Dia x Depth):
35cmx28cm(13.5inx11.2in)
Environmental:
IP55
Input Voltage:
12 to 30 V
Pole Diameter Range:
3.8 cm – 6.4 cm (1.5 in – 2.5 in)
Surge Suppression:
1 Joule Integrated
Temperature:
30°C to +50°C (-22°F to +122°F)
Wind Survival:
125 km/hour (78 mi/hour)
Weight:
1.0 kg (2.2 lbs)
Power Consumption:
8 W Maximum, 5 W Typical
CERTIFICATIONS
CE:
5.4 GHz EN 301 893 V2.1.1 5.8 GHz EN 302 502 V2.1.1
FCCID:
Z8H80FT0031
Industry Canada Cert:
109W-0031
