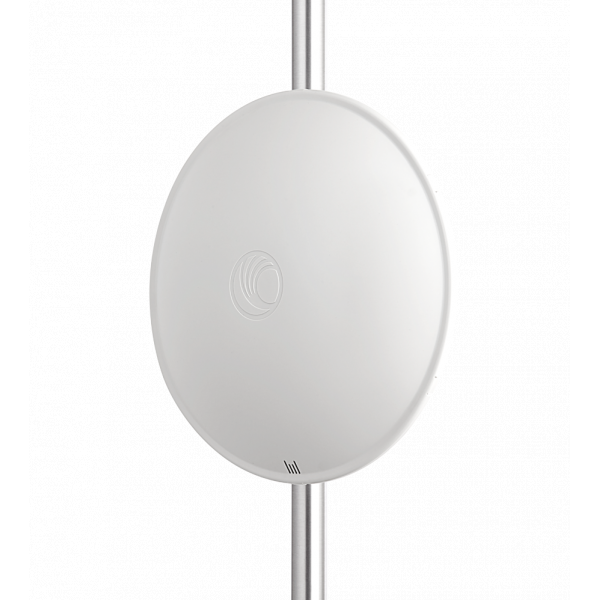

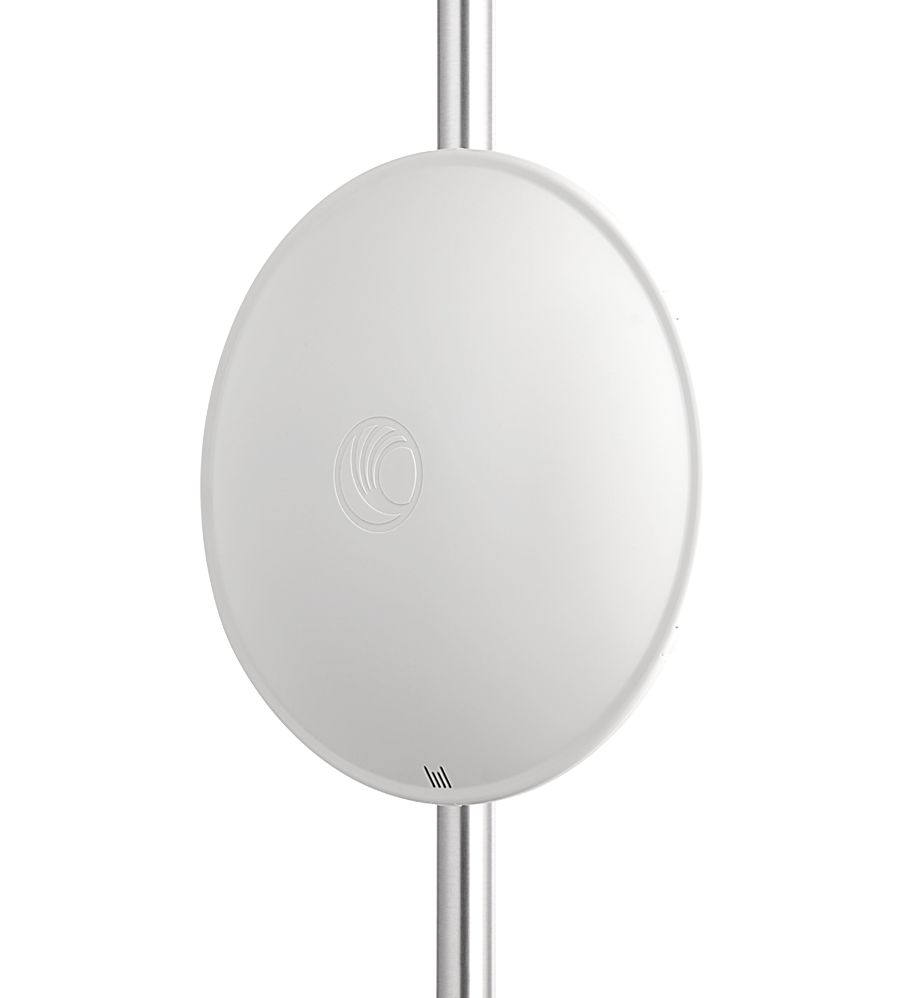

ePMP Force 200 2.4 GHz

Designed to operate in high interference environments

The ePMP™ Force 200 adds a subscriber module and PTP radio to ePMP’s 2.4 GHz line of products provides superior throughput of over 200 Mbps of real user data. Long range deployment is enabled by the 17 dBi antenna combined with 30 dBm transmit power. Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.

Описание

Designed to operate in high interference environments

The ePMP™ Force 200 adds a subscriber module and PTP radio to ePMP’s 2.4 GHz line of products provides superior throughput of over 200 Mbps of real user data. Long range deployment is enabled by the 17 dBi antenna combined with 30 dBm transmit power. Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.

Спецификации

SPECTRUM

Channel Spacing:
Configurable in 5 MHz increments
Frequency Range:
  • 2402 - 2472 MHz
Channel Width:
5 | 10 | 20 | 40 MHz

INTERFACE

Ethernet Interfaced:
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
MAC (Media Access Control) Layer:
Cambium Proprietary
Network Management:
HTTPS, SNMPv2c, SSH
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
VLAN:
802.1Q with 802.1p priority

PERFORMANCE

ARQ:
Yes
Modulation Levels (Adaptive):
MCS0 (BPSK) to MCS15 (64QAM 5/6)
Nominal Receive Sensitivity (w/FEC) @200MHz Channel:
MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel:
MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Quality of Service:
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range:
-15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)

SECURITY

Encryption:
128-bit AES

PHYSICAL

Dimensions (Dia x Depth):
47 cm x 28 cm (18.5 in x 11.2 in)
Environmental:
IP55
Input Voltage:
10 to 30 V
Pole Diameter Range:
6.4 cm - 7.6 cm (2.5 in - 3 in)
Surge Suppression:
1 Joule Integrated
Power Consumption:
10 W Maximum, 5 W Typical

CERTIFICATIONS

FCCID:
2.4 GHz: Z8H80FT0019
Industry Canada Cert:
2.4 GHz: 109W-0019
