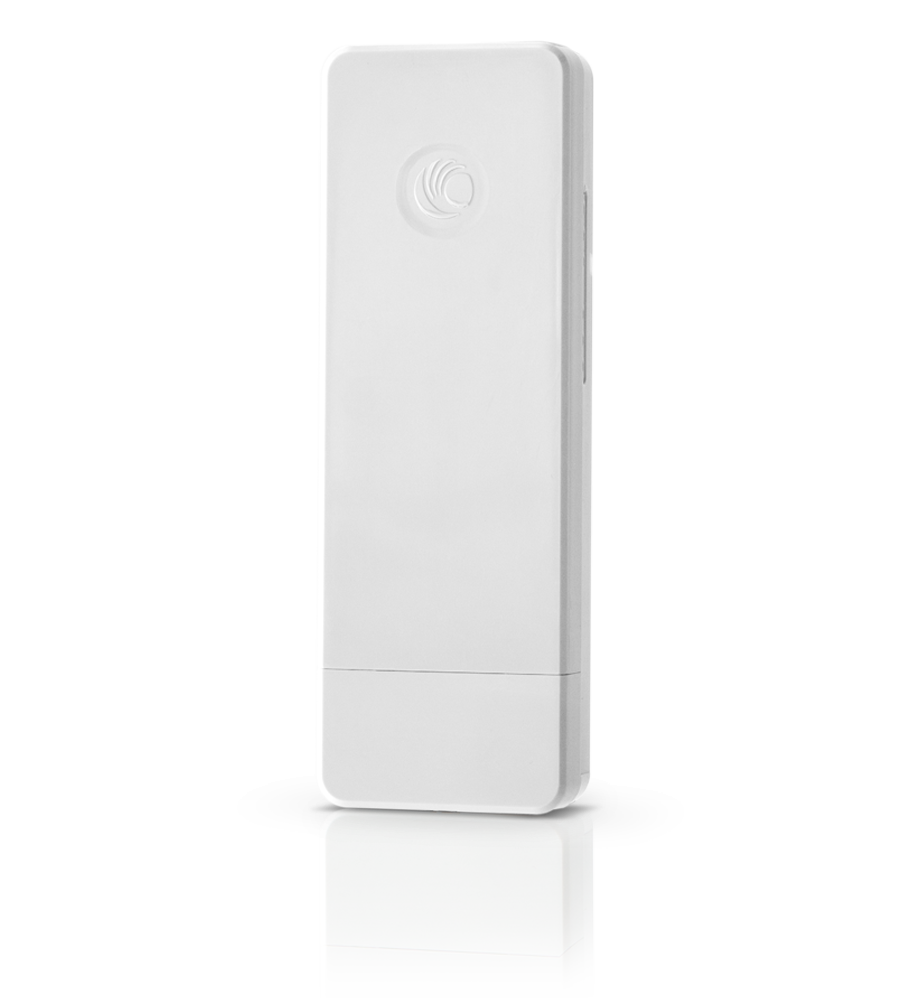

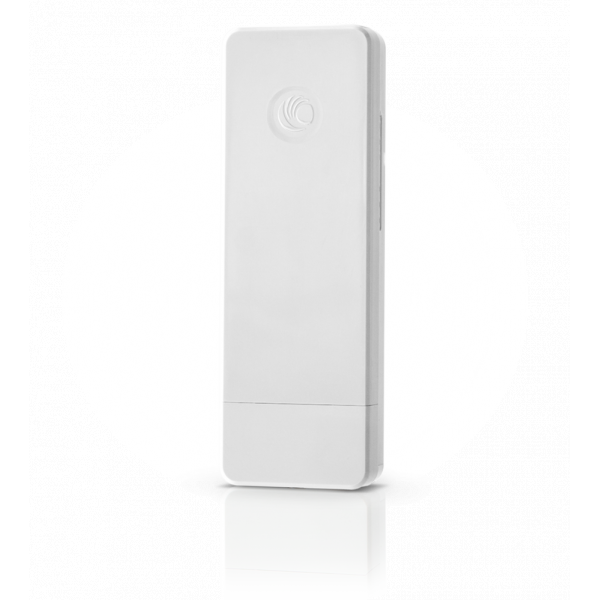

ePMP Force 300-13L 5 GHz Subscriber Module

5 GHz Subscriber Module

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum becomes an increasingly scarce commodity, finding the right broadband connectivity solution is vital for all low- and high-density deployments.

Force 300-13L is not available in the United States, Canada or anywhere that falls under FCC jurisdiction.

Описание

5 GHz Subscriber Module

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum becomes an increasingly scarce commodity, finding the right broadband connectivity solution is vital for all low- and high-density deployments.

Force 300-13L is not available in the United States, Canada or anywhere that falls under FCC jurisdiction.

Спецификации

SPECTRUM

Channel Spacing:
Configurable in 5 MHz increments
Frequency Range:
  • 4920- 5970 MHz
Channel Width:
10 | 20 | 40 | 80 | MHz

INTERFACE

Ethernet Interfaced:
10/100/1000 BaseT
MAC (Media Access Control) Layer:
Cambium Networks proprietary
Network Management:
HTTPS, SNMPv2c, SSH
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4, IPv6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, 24V POE, IGMP Snooping
VLAN:
802.1Q with 802.1p priority

LINK BUDGET

Antenna:
Integrated dual-polarity 9 dBi omni-directional antenna
Transmit Power Range:
0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
