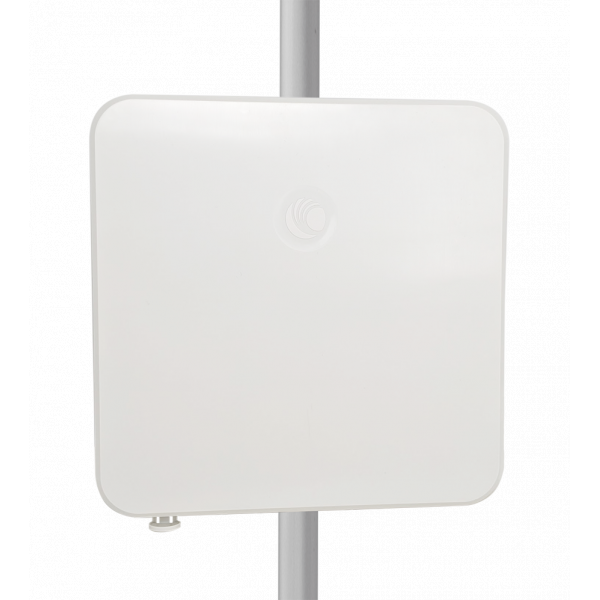

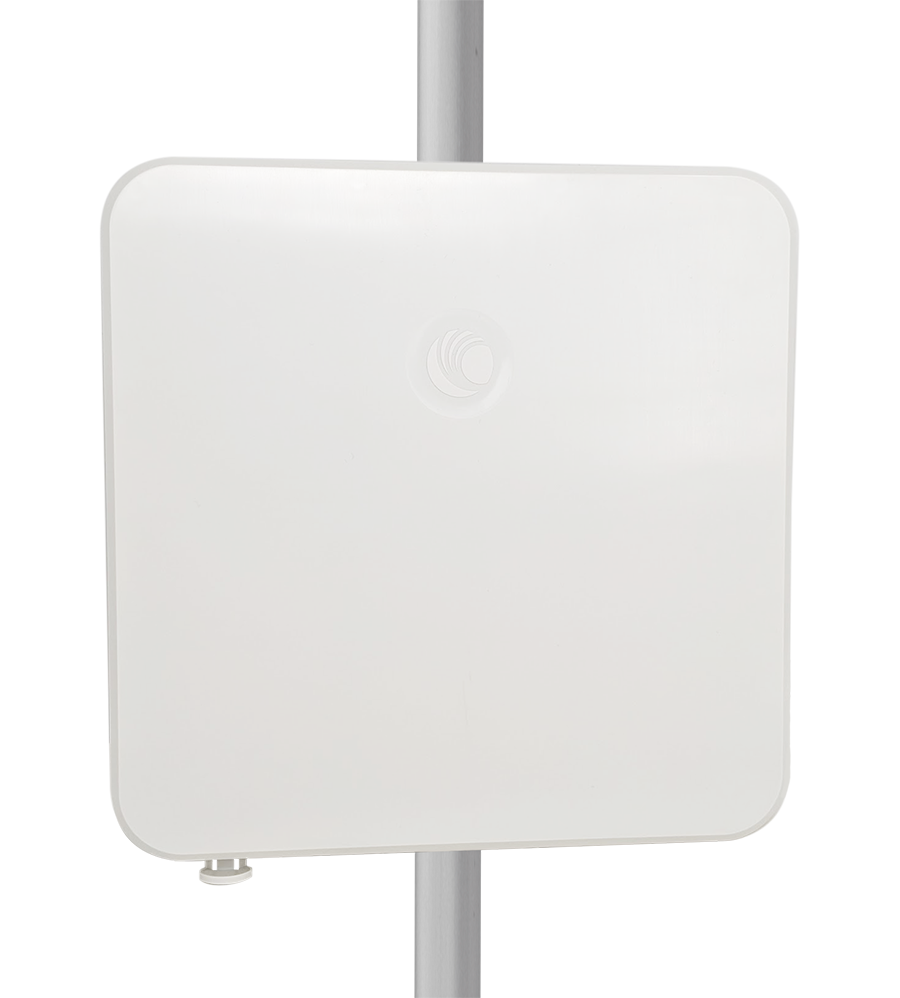

The ePMP Force 300-19 is designed to operate in high interference environments and provides superior throughput up to 600 Mbps of real user data and supports channel sizes from 20 MHz up to 80 MHz and modulations up to 256QAM.
ePMP Force 300-19
ePMP Force 300-19
Описание
Спецификации
SPECTRUM
Channel Spacing:
Configurable in 5 MHz increments
Frequency Range:
- Wide Band Operation 4910 - 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width:
20 | 40 | 80 MHz
INTERFACE
ARQ :
Yes
Modulation Levels (Adaptive):
MCS0(BPSK) to MCS9 (256 QAM-5/6)
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel:
MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -68 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel:
MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -66 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel:
MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -61 dBm (per chain)
Transmit Power Range:
0 to +28 dBm (combined up to the regioanl EIRP limit) (1 dB interval)
SECURITY
Encryption:
128-bit AES (CCMP mode)
CERTIFICATIONS
CE:
EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)**
FCCID:
Z8H89FT0048
Industry Canada Cert:
109W-0048
