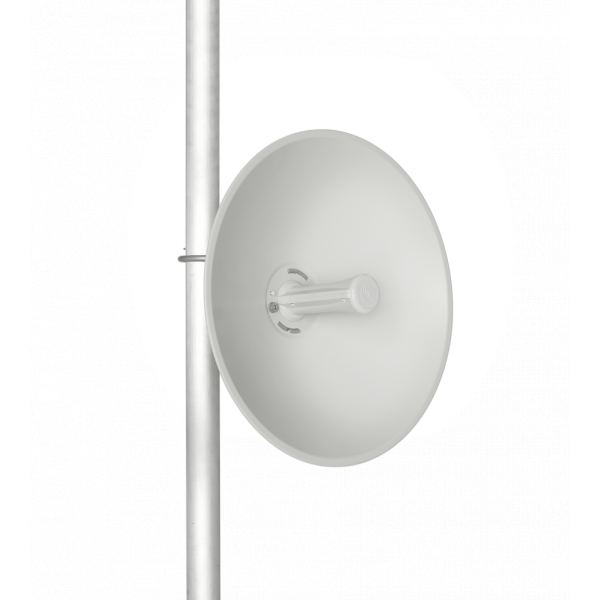

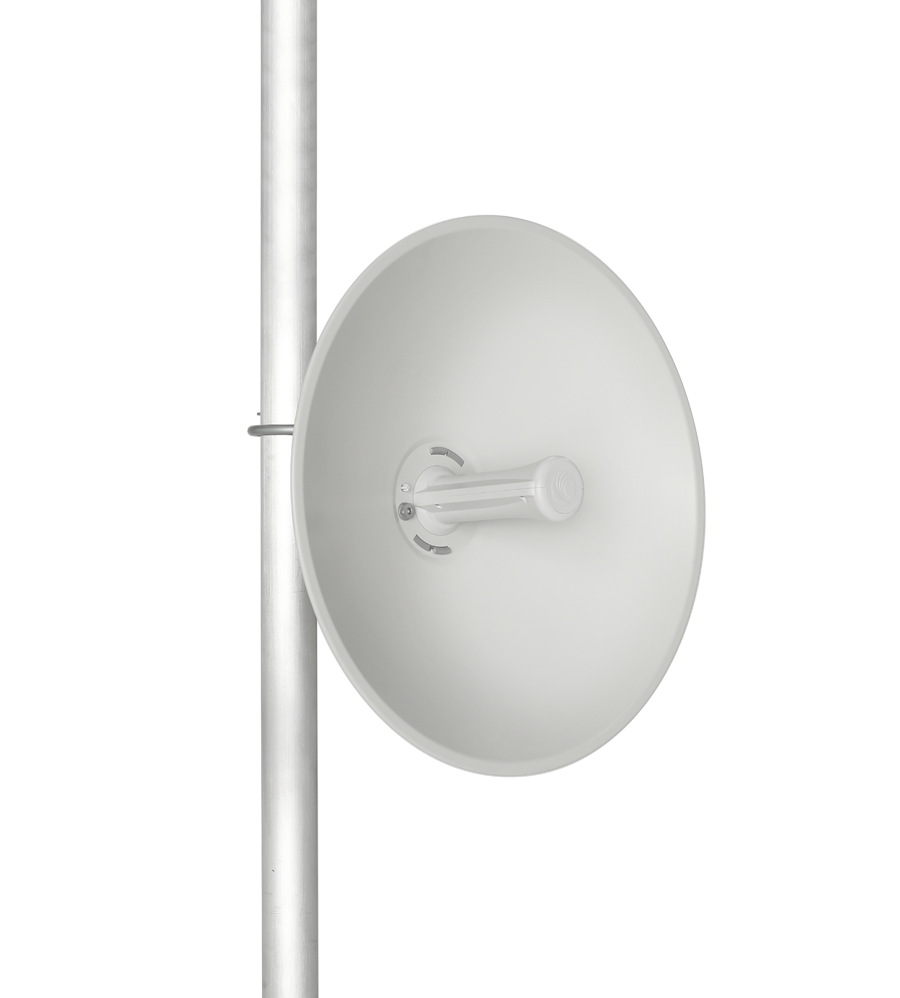

ePMP Force 300-25

Cambium Networks’ ePMP™ Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.

The High-gain ePMP Force 300-25 802.11AC Wave 2 solution provides 500+ Mbps peak throughput and always-on spectrum analysis.

научи повече Къде да купя

Описание

Cambium Networks’ ePMP™ Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.

The High-gain ePMP Force 300-25 802.11AC Wave 2 solution provides 500+ Mbps peak throughput and always-on spectrum analysis.

Спецификации

SPECTRUM

Channel Spacing:
Configurable in 5 MHz increments
Frequency Range:
  • Wide Band Operation 5.150 – 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width:
20 | 40 | 80 MHz

INTERFACE

Ethernet Interfaced:
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Proprietary Physical Layer:
2x2 MIMO/OFDM
Protocols Used:
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH

PERFORMANCE

Nominal Receive Sensitivity (w/FEC) @20 MHz Channel:
MCS0 = -87 dBm to MCS8 (256 QAM-3/4) = -63 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel:
MCS0 = -85 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel:
MCS0 = -82 dBm to MCS9 (256QAM-5/6) = -56 dBm (per chain)

SECURITY

Encryption:
128-bit AES (CCMP mode)

PHYSICAL

Dimensions (Dia x Depth):
47 cm x 31 cm (18.5 in x 12.2 in)
Environmental:
IP55
Temperature:
-22°F to +140°F (-30°C to +60°C)
Weight:
2.4 kg (5.3 lbs)
