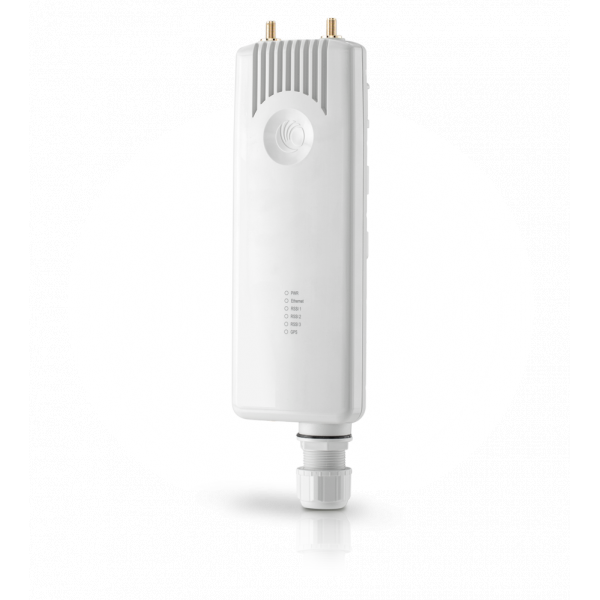

ePMP Force 300 CSM Connectorized Subscriber Module
ePMP Force 300 CSM Connectorized Subscriber Module
Описание
Спецификации
INTERFACE
Ethernet Interfaced:
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
MAC (Media Access Control) Layer:
Cambium Proprietary
Network Management:
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
VLAN:
802.1Q with 802.1p priority
PERFORMANCE
ARQ:
Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel:
MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel:
MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel:
MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Transmit Power Range:
0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
PHYSICAL
Environmental:
IP67
Surge Suppression:
1 Joule Integrated; Optional 30V Surge Suppressor (C000000L065A)
Temperature:
-22°F to +140°F (-30°C to +60°C)
Wind Survival:
180 km/hour (112 mi/hour)
Weight:
0.46 kg (1.0 lbs.)
