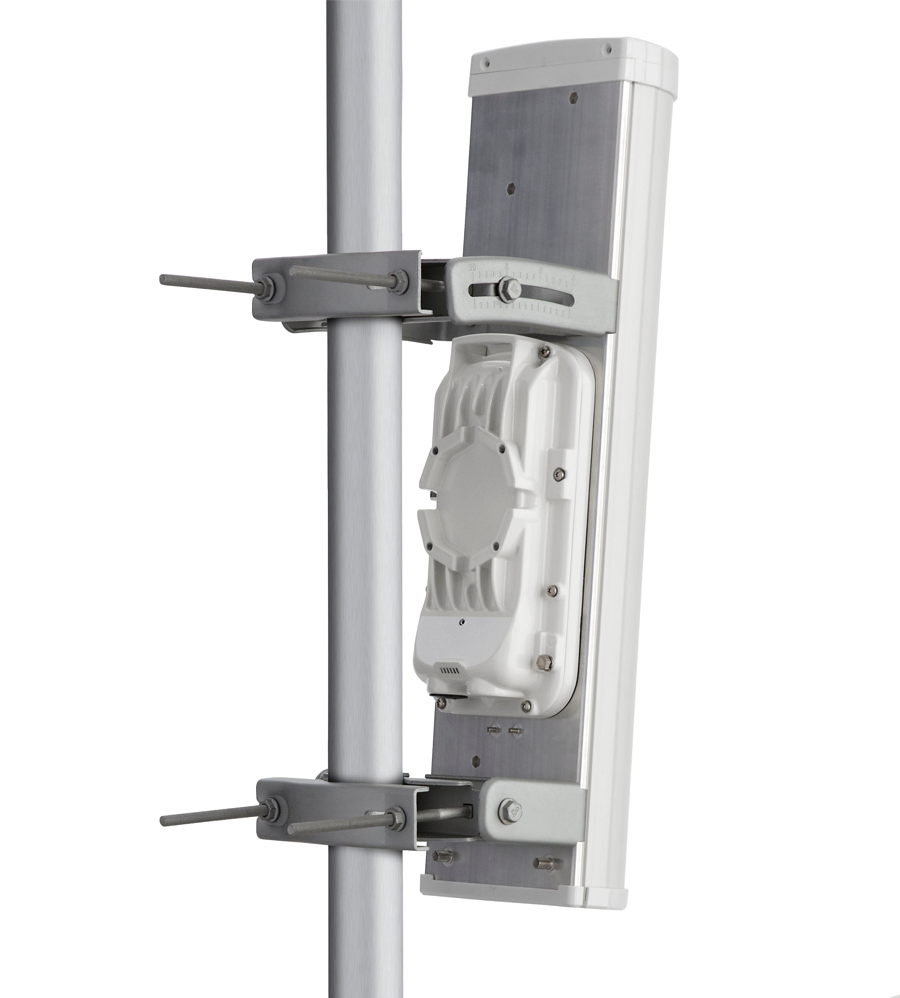

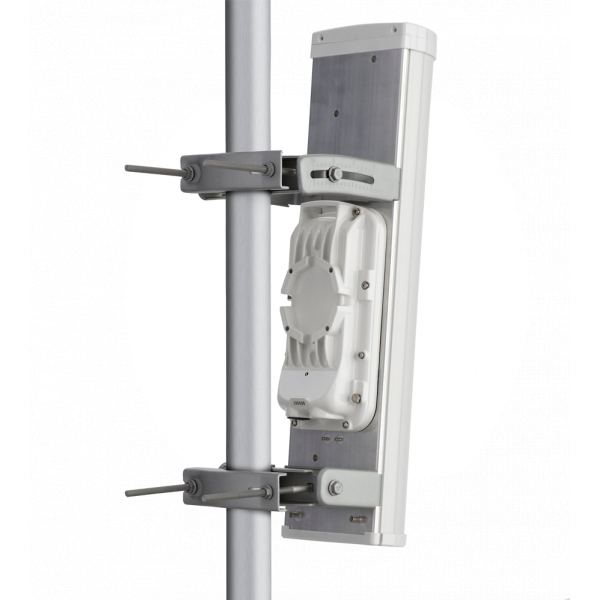

PMP 450i Fixed Wireless Access Point
PMP 450i Fixed Wireless Access Point
Описание
Спецификации
SPECTRUM
Channel Spacing:
Configurable on 2.5 MHz increments, 3 GHz customizable to 50 KHz
Frequency Range:
- 3 GHz : 3300 - 3900 MHz, 5 GHz : 4900 - 5925 MHz
Channel Width:
5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
INTERFACE
Ethernet Interfaces:
- 10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)
MAC (Media Access Control) Layer:
Cambium Networks proprietary
MTU:
1700 bytes
Network Management:
IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM
Physical Layer:
2x2 MIMO OFDM
Protocols Used:
IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
VLAN:
802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
PERFORMANCE
ARQ:
Yes
Maximum Deployment Range:
Up to 40 miles (64 km)
Quality of Service:
Diffserv QoS
Latency:
3 - 5 ms, typical
PHYSICAL
Antenna Connection:
50 ohm, N-Type (Connectorized version only)
Environmental:
IP67, IP66
Mean Time Between Failure:
> 40 Years
Surge Suppression (LPU fitted):
EN61000-4-5: 1.2us/50us, 500 V voltage waveform Recommended external surge suppressor: Cambium Networks Model # C000000L033A
Temperature / Humidity:
-40°C to +60°C (-40°F to +140°F), 0-100% condensing
