20 Gbps throughput, 8 10/100/1000 ports, 2 SFP Uplink ports

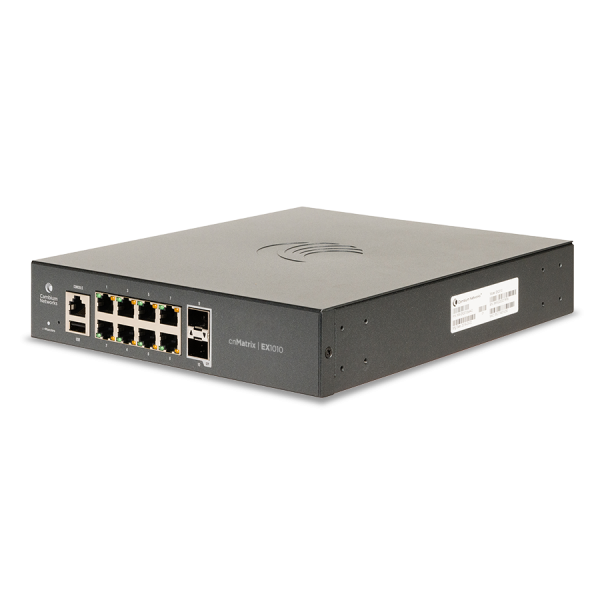

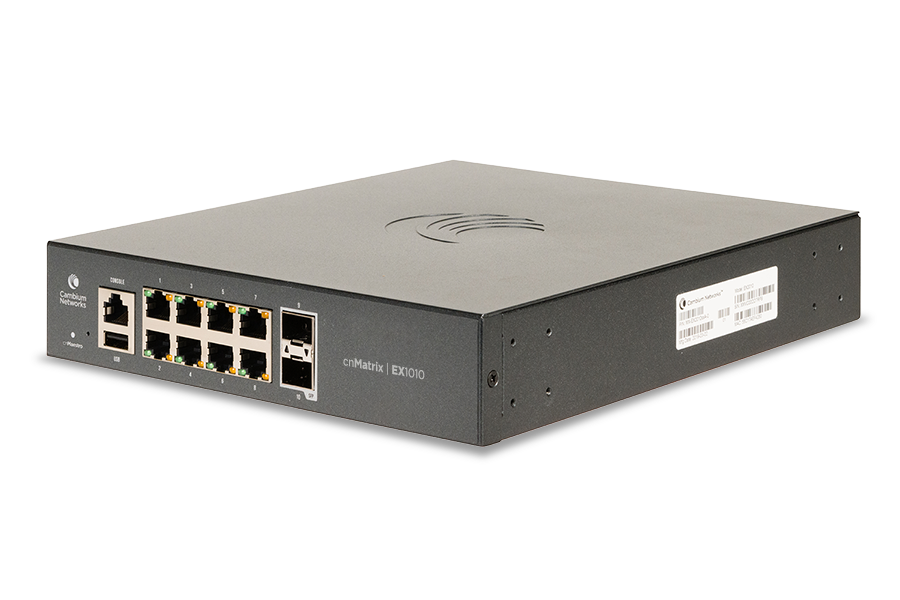

cnMatrix Switch EX1010
cnMatrix Switch EX1010
Описание
Спецификации
PERFORMANCE
Quality of Service:
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
SECURITY
Permit/deny actions for inbound IP and Layer-2 traffic classification based on:
- Time-Based ACL
- Source/Destination IP address
- TCP/UDP Source/Destination port
- IP Protocol Type
- Type of Service (ToS) or differentiated services (DSCP) field
- Source/Destination MAC address
- EtherType
- IEEE 802.1p user priority (outer and/or inner VLAN tag)
- VLAN ID (outer and/or inner VLAN tag)
- RFC 1858—Security Considerations for IP Fragment Filtering
FEATURES
10/100/1000 ports:
8
Internal fans:
Fanless
PoE enabled ports:
n/a
Rack Mount Kit:
Optional
Throughput:
20 Gbps
Uplink ports:
4 SFP
QUALITY OF SERVICE
Quality of Service:
- ACL mapping and marking of ToS/DSCP (COS)
- ACL mapping to priority queue
- Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP
- Honoring DSCP and 802.1p(CoS)
