The cnPilot e501S 802.11ac Outdoor Sector Access Point includes an IP67 enclosure, 90° ~ 120° integrated sector antenna, supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more.

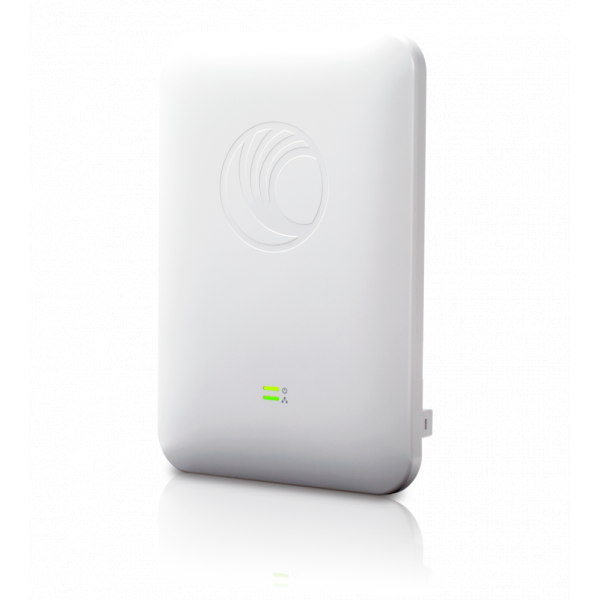

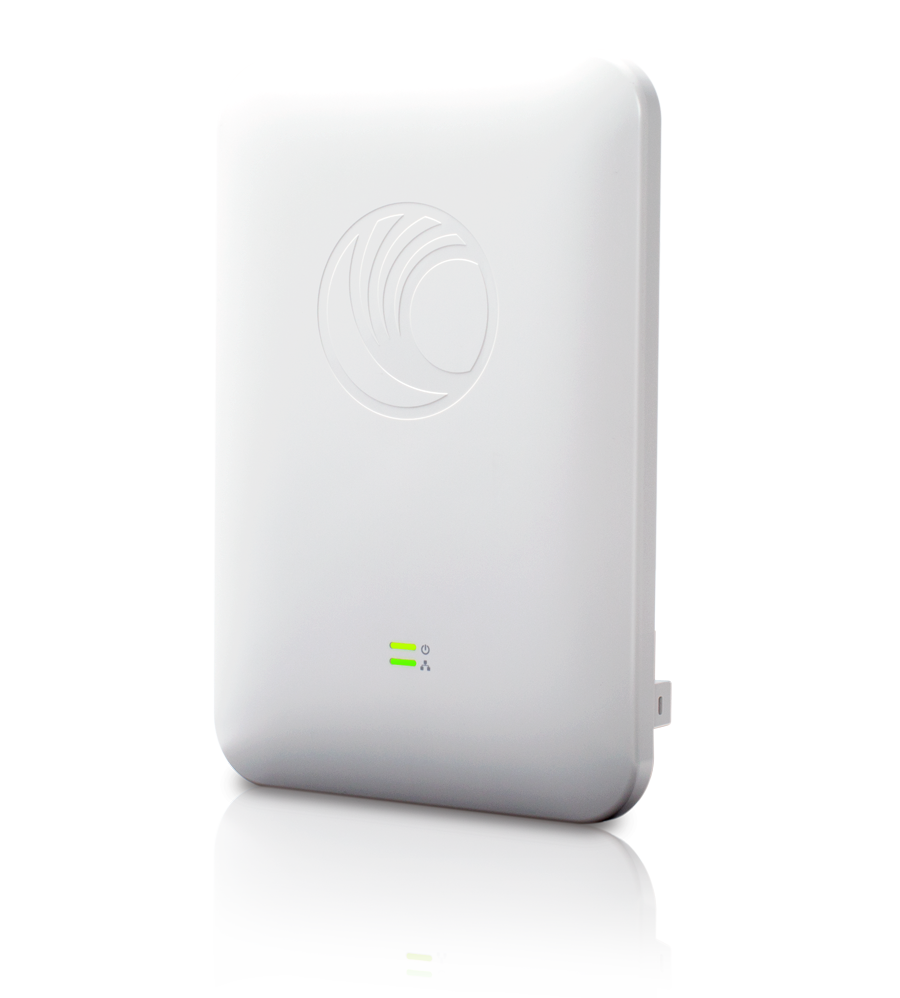

cnPilot e501S Wi-Fi Access Point
cnPilot e501S Wi-Fi Access Point
Описание
Спецификации
PHYSICAL
Mounting Options:
Pole mount bracket (included) or wall-mount (with included bracket or without)
Dimensions (Dia x Depth):
30 x 20.4 x 6.5 cm (without bracket)
Weight:
Without bracket: 881 g (0.88 Kg); with Bracket: 1,063 g (1.06 Kg)
WI-FI FEATURES
Authentication:
RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS • MAC auth (local database or External RADIUS server)
Captive Portal:
- cnMaestro Controller
Hotspot 2.0:
Yes
Scheduled SSID:
Turn SSID ON/OFF on a daily/weekly/time of day basis
Controller modes:
- Autonomous Controller-less operations (E.g.: roaming)
Secured WLAN:
WPA-TKIP, WPA2 AES, 802.1x 802.11w (Protected Management Frames)
ACCESS POINT SPECS
Frequency Bands:
2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE), Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz
Max SSIDs:
16
SSID Security:
WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
