cnPilot e500 APs feature two Gigabit Ethernet ports and an AUX port capability, enabling outdoor deployment anywhere with additional power available for another backhaul radio, security camera, or other additional equipment.

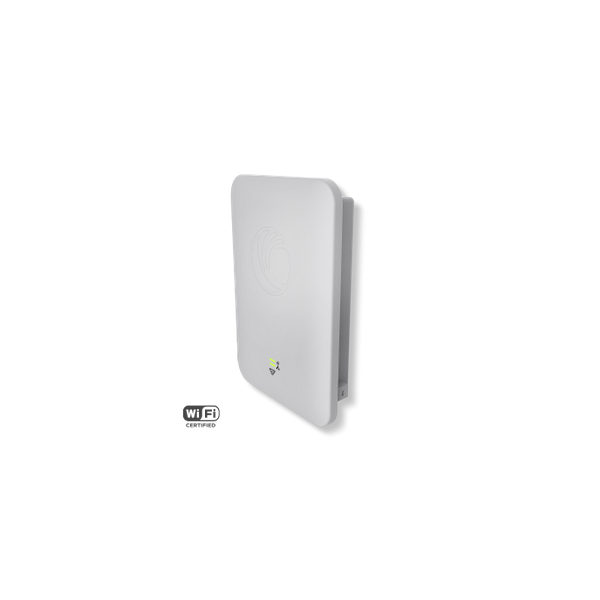

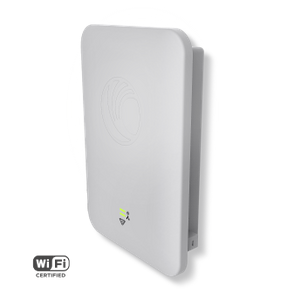

cnPilot e500 Wi-Fi Access Point
cnPilot e500 Wi-Fi Access Point
Описание
Спецификации
PHYSICAL
Mounting Options:
Pole mount bracket (included) or wall-mount (with included bracket or without)
Dimensions (HxWxD):
30 x 20.4 x 6.5 cm (without bracket)
Weight:
Without bracket: 881 g (0.88 Kg); with Bracket: 1,063 g (1.06 Kg)
WI-FI FEATURES
Authentication:
RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS • MAC auth (local database or External RADIUS server)
Captive Portal:
- cnMaestro Controller
- Redirection to external RADIUS
- Stand-alone AP based
- Server DNS logging
Tools:
- Packet capture
- IP connectivity
- Wi-Fi analyzer
- Sniffer
- Auto logging
- Open source ZapD compliant performance test tool
Controller modes:
- Autonomous Controller-less operations (E.g.: roaming)
- Cloud Managed
- On-premise virtualized controller
ACCESS POINT SPECS
Frequency Bands:
2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE), Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz
Max Concurrent Clients:
256
SSID Security:
16
