The cnPilot e502S 802.11ac Outdoor Sector Access Point includes an IP67 enclosure, 30° integrated sector antenna, supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more.

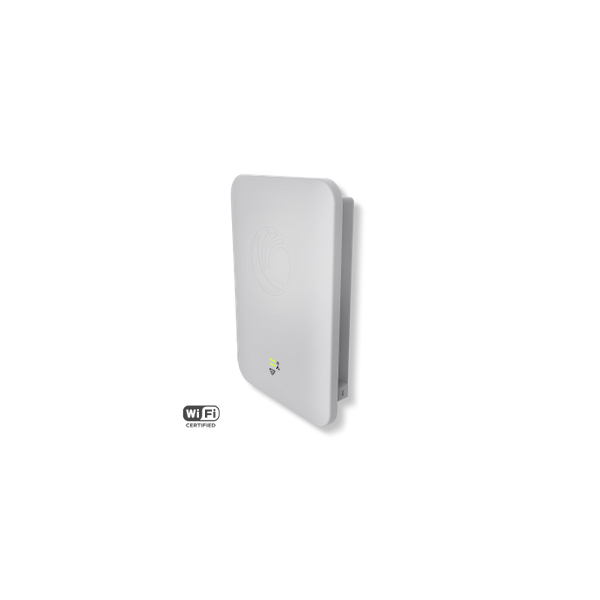

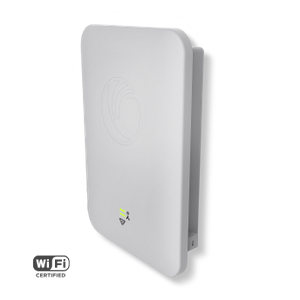

cnPilot e502S Wi-Fi Access Point
cnPilot e502S Wi-Fi Access Point
Описание
Спецификации
PHYSICAL
Dimensions (Dia x Depth):
30 x 20.4 x 6.5 cm (without bracket)
Weight:
Without bracket: 881 g (0.88 Kg); with Bracket: 1,063 g (1.06 Kg)
Operating Temperature:
-30° C to +60° C
Power Consumption:
8 W Max: 12.95W (no auxiliary device connected)
WI-FI FEATURES
Controller modes:
- Autonomous Controller-less operations (E.g.: roaming)
- Cloud Managed
- On-premise virtualized controller
Secured WLAN:
WPA-TKIP, WPA2 AES, 802.1x 802.11w (Protected Management Frames)
ACCESS POINT SPECS
Frequency Bands:
2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE), Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz
Max Concurrent Clients:
256
Max Data Rates:
s ETHERNET PORTS D
Max Range:
Client: 213 m (700 Ft); Actual range will vary based on local RF conditions & client capability. Mesh: 2.4 GHz: 3,000 m (9840 Ft.) 5 GHz: 1,500 m (4,900 Ft.)
SSID Security:
WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open
