The IPV6 capable R190W is ideal for cost-conscious service providers seeking a standard, entry level home router with cutting edge cloud management and robust features.

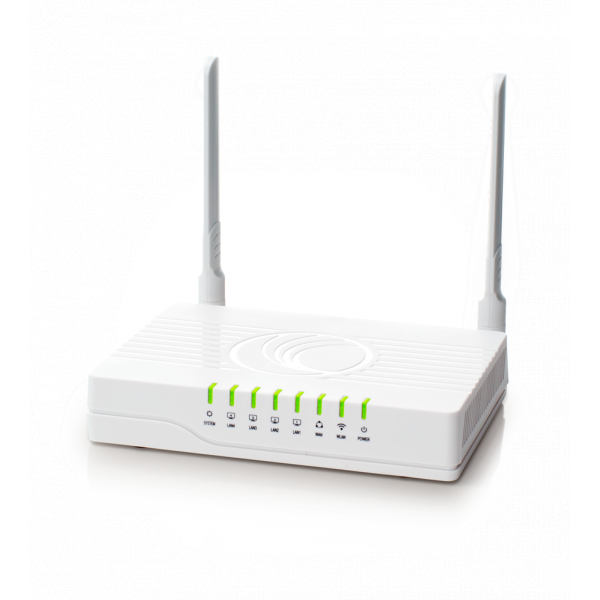

cnPilot r190 Series Home Router
cnPilot r190 Series Home Router
Описание
Спецификации
SPECIFICATIONS
Applications:
- Support NAT mode and Bridge modE
- Support DDNS
- MAC address cloning
- Built-in Wired speed NAT Router
- DHCP Server and Client
- IP conflict detection
- Port Forwarding, DMZ, SuperDMZ
- 802.1Q VLAN/802.1p, DSCP, Rate Limiting
- VPN (PPTP,L2TP, IPSec) Passthrough
- SNTP
- IGMPv2
- Firewall (SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
Environmental:
- Operation Temperature: -5~45 Degree C
Flash:
16MBytes Flash
I/O Interfaces:
- 1 RJ-45 for WAN port (Ethernet 100 Base-T)
- 4 RJ-45 for LAN port (Ethernet 100 Base-T)
Key Feature:
- 100Mbps NAT/NAPT speed
Management:
- Firmware Upgrade
- Web Management Interface
- Local and Remote Syslog (RFC3164)
- Auto Provisioning
- SNTP Time Synchronization
- Multi User Level
- SNMP v2
- Telnet
- TR069
- System Log: local log and remote log
Power Supply:
- AC/DC Adapte
- AC Input: 100~240V, 50~60Hz
- DC Output: 12V, 1.0A
Protocols:
- DHCP/PPPoE • HTTP Server for Web Management
- TFTP/HTTP for Auto Provisioning
- DHCP Option Codes for SIP (RFC3361)
- DNS/DNS SRV (RFC1706 and RFC 2782)
- IEEE802.1Q VLAN/802.1p and IP DSCP
- SNTP
RAM and CPU:
- 64MBytes DDR3 RAM
- MT7628N
VoIP SoC:
MIPS Single-core 580MHz
Wireless:
- 4 SSID
- Dynamic WEP(64/128bit)
- AES/TKIP
- MAC certification
- WEP certification
- WPA/WPA2
- AP Isolation and MBSSID AP Isolation
- WMM
- WDS
- WPS
- MAC Filter(different from wired MAC Filter)
- Static WEP(64/128bit)
