cnPilot™ e700 Enterprise Outdoor APs feature Gigabit throughput, 802.11ac Wave 2 standard with beam forming for superior outdoor Wi-Fi for enterprise campus, hospitality, higher education and public Wi-Fi applications.

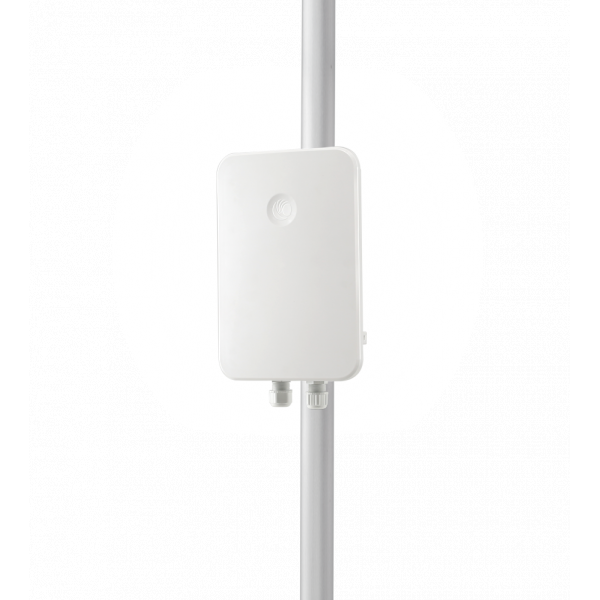

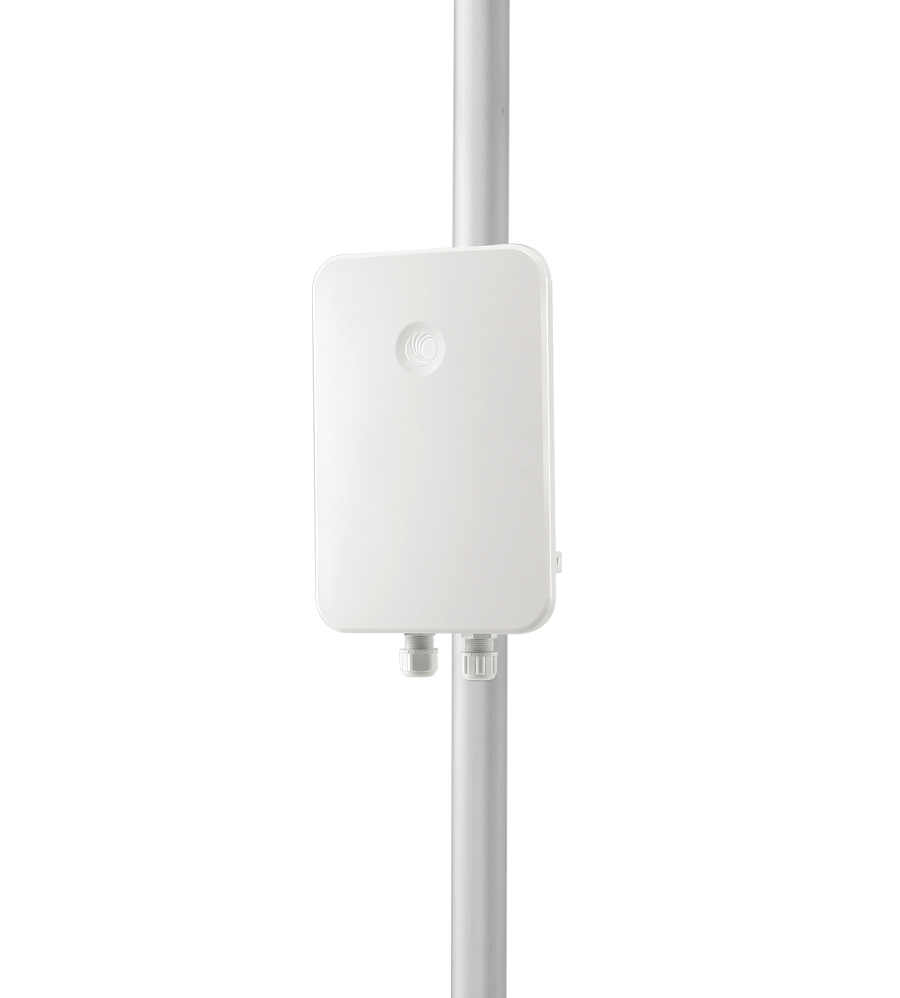

cnPilot e700 Wi-Fi Access Point
cnPilot e700 Wi-Fi Access Point
Описание
Спецификации
WI-FI FEATURES
Authentication:
RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS • MAC auth (local database or External RADIUS server)
Captive Portal:
- cnMaestro Controller
Guest Access:
Yes. With Active Directory Integration • Vouchers • Rate limiting • Splash page creation on cnMaestro
Hotspot 2.0:
Passpoint supported
Scheduled SSID:
Turn SSID ON/OFF on a daily/weekly/time of day basis
Controller modes:
- Autonomous Controller-less operations (E.g.: roaming)
Secured WLAN:
WPA-TKIP, WPA2 AES, 802.1x 802.11w (Protected Management Frames)
ACCESS POINT SPECS
Antenna:
- Integrated Omni
Antenna Gain:
8 dBi (2.4 GHz and 5 GHz)
Dimensions (cm):
315 x 215 x 66 mm (without bracket)
Ethernet Ports:
Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T)
Frequency Bands:
2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE), Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz
Max Concurrent Clients:
512
Max Data Rates:
2.4GHz: 400Mbps, 5GHz: 1733Mbps
Max SSIDs:
16
Power Consumed:
Typical 18W. Max 24.6W
SSID Security:
WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Weight:
3.174 lbs (1700 gms) without bracket
cnMAESTRO WI-FI CONTROLLER
Common Manager:
Single pane of glass: Controller for Wi-Fi and network manager for ePMP and PMP wireless backhaul products
Configuration:
GUI based configuration or template based configuration options
Device Inventory:
Inventory tracking
On-Boarding:
Secure zero touch fast on-boarding
Provisioning:
Easy zero touch virtual network provisioning Provision before install (pre-provision)
