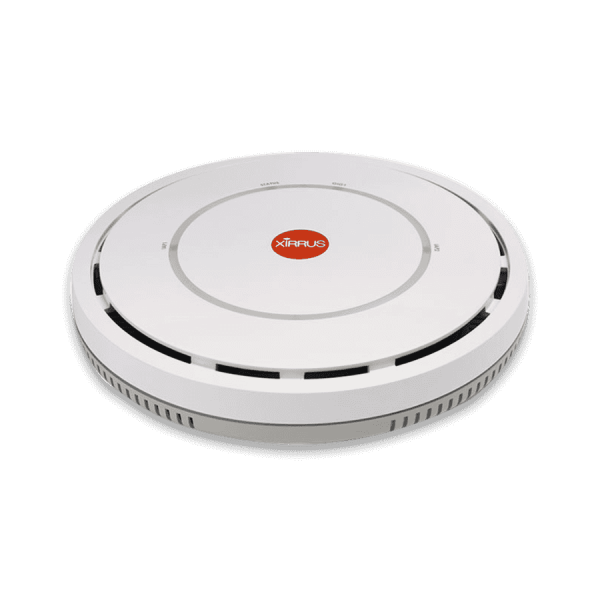

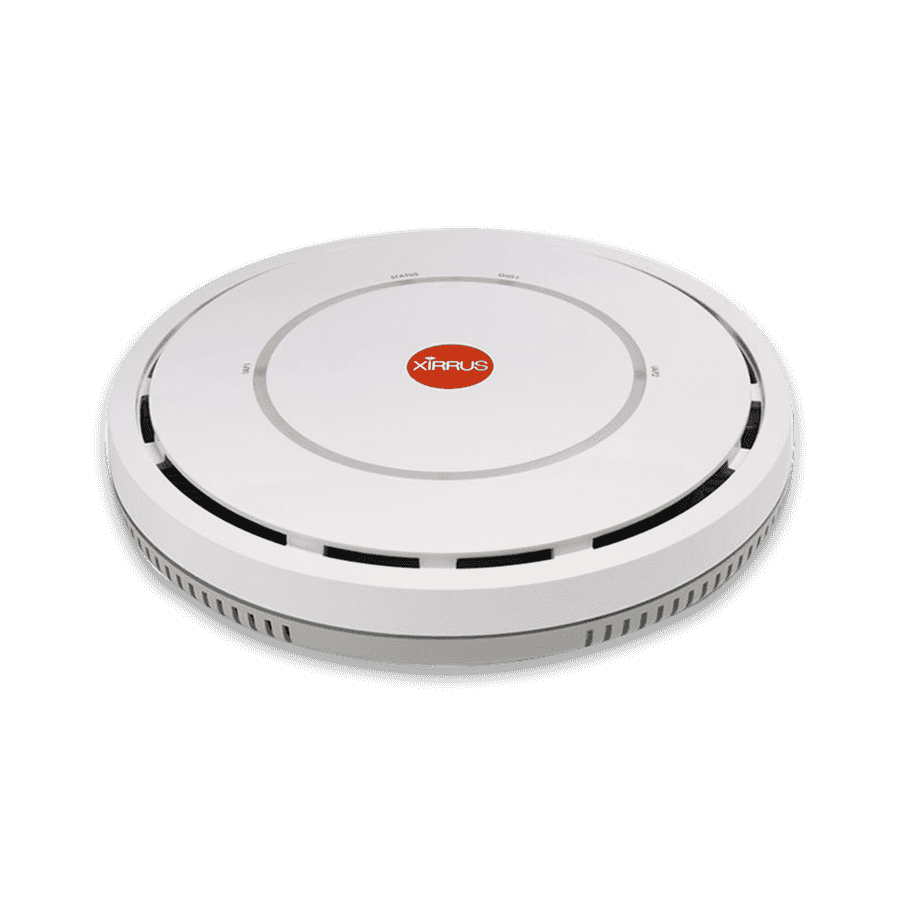

Xirrus XD2-240 Wi-Fi Access Point

Unparalleled Performance with 2X the Wi-Fi Capacity of any 802.11ac Wi-Fi AP in the Industry

Boost Wi-Fi performance and increase network efficiency with 802.11ac Wave 2 technology XD2 access points (APs) meet today’s BYOD and IoT demands with the capacity to keep up whenever needs change. Ideal for offices, classrooms, conference rooms, and other areas requiring robust connectivity, the XD2 delivers extreme performance even with high-bandwidth applications.

Описание

Meet today’s Wi-Fi demands and Prepare for the Future

Future Proof Platform

Support software-defined radios that enable dual 802.11ac radio operation for a long product lifespan and gradual migration to Wave 2 as clients come to market.

Industry-leading Efficiency

Multi-user MIMO (MU-MIMO) Wave 2 advancement enables multiple clients to communicate at once revolutionizing Wi-Fi operation and dramatically increasing efficiency.

Superior Speed

Create an unsurpassed user experience including mobile applications and IoT devices with up to twice the speed of other 802.11ac Wave 2 APs on the market.

Boost Wi-Fi performance and increase network efficiency with 802.11ac Wave 2 technology

XD2 access points (APs) meet today’s BYOD and IoT demands with the capacity to keep up whenever needs change. Ideal for offices, classrooms, conference rooms, and other areas requiring robust connectivity, the XD2 delivers extreme performance even with high-bandwidth applications.

Manage and upgrade your network with ease—choose cloud-based or on-premise centralized network management. Customize installation through deployment kits, enclosures, and mounting options and build the system that works best for you.

Спецификации

TECHNICAL SPECS

Max Associated Devices:
480
Max Power Consumption:
3x3 MU-MIMO - 20W (802.3at PoE) / 4x4 MU-MIMO - 24W (802.3at PoE)
Max Wi-Fi Bandwidth:
3x3 MU-MIMO- 3.9Gbps / 4x4 MU-MIMO- 6.9Gbps
Radio Technology:
3x3 MU-MIMO, 802.11ac, 2.6Gbps; 4X4 MU-MIMO, 802.11ac, 3.47Gbps; 2 -Software Defined Radios
Supported Standards:
802.11a/b/g/n/ac (Wave 2)

CONFIGURATION SPECS

Max VLAN:
64
Maximum Power Consumption:
24W (802.3at PoE) with Bluetooth
Wi-Fi Threat Sensor:
Yes
Chassis Dimensions:
8” Diameter, 1.82”H
